KMDA 7876-1 FL MattFinish

Induction hob with integrated vapour extraction  800 mm | Extraction and recirculation | SilenceMotor | PowerFlex XL cooking area | MattFinish

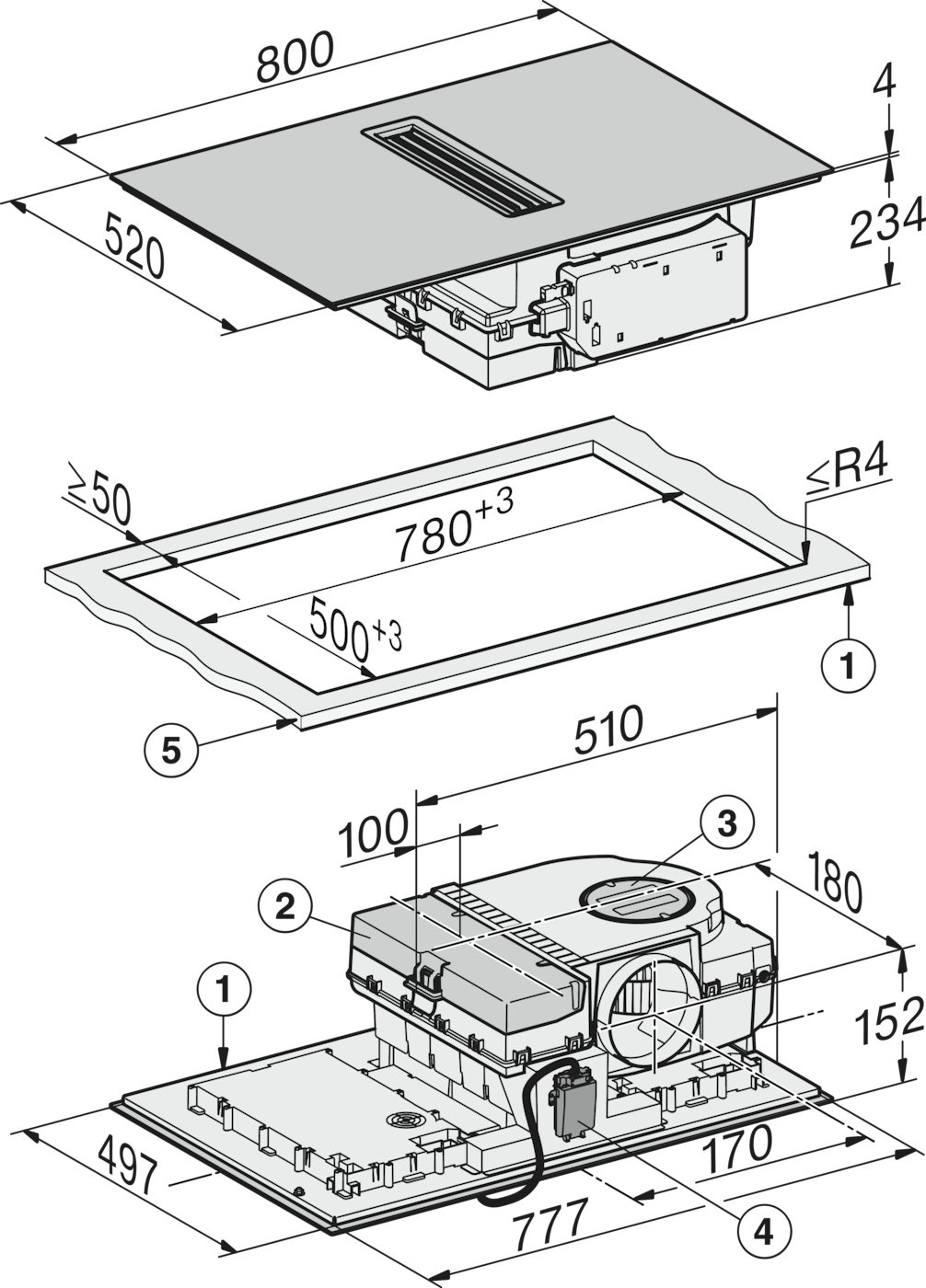

1) Front, 2) Removable drip tray, 3) Cleaning flap, 4) Mains connection box with mains connection cable, L = 1600 mm, 5) Worktop thickness, Exhaust air and guided recirculation mode: ≥10 mm, Plug&Play operation: ≥10 mm - ≤40 mm

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL

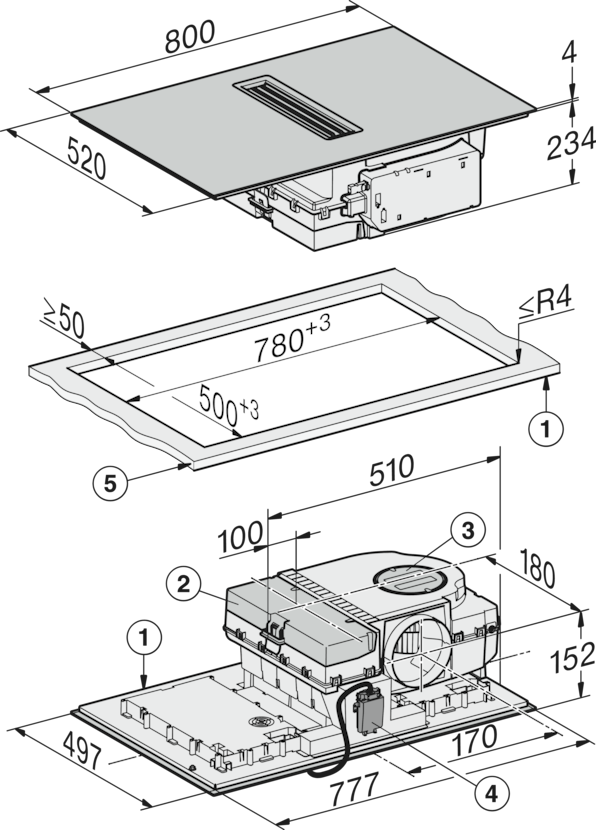

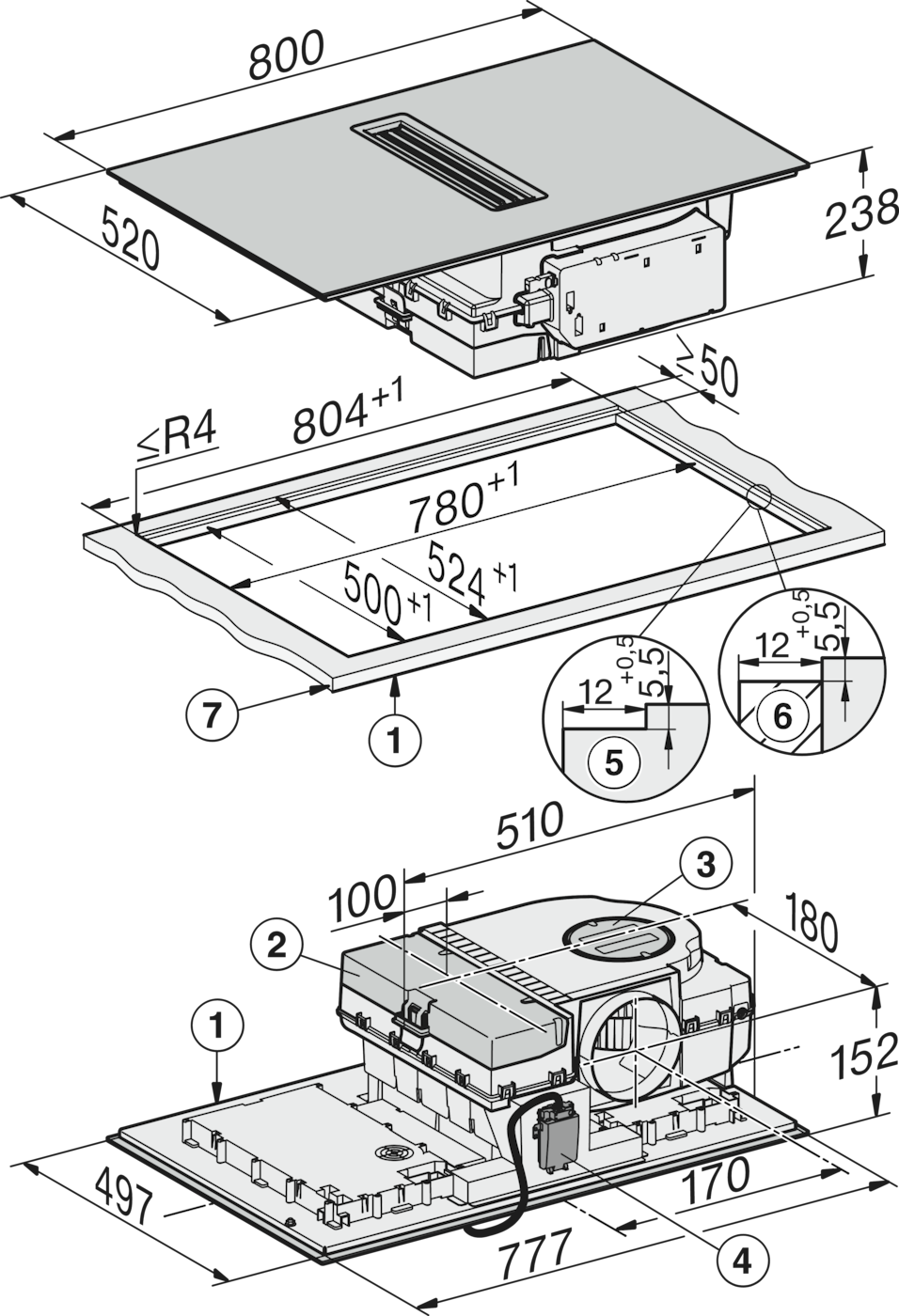

1) Front, 2) removable drip tray, 3) cleaning flap, 4) Mains connection box with mains connection cable, L = 1600 mm, 5) Step milling natural stone worktop, 6) Wooden strip 12 mm (not included in delivery), 7) Worktop thickness, Exhaust air and guided recirculation mode: ≥10 mm, Plug&play operation: ≥10 mm - ≤40 mm

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - flush

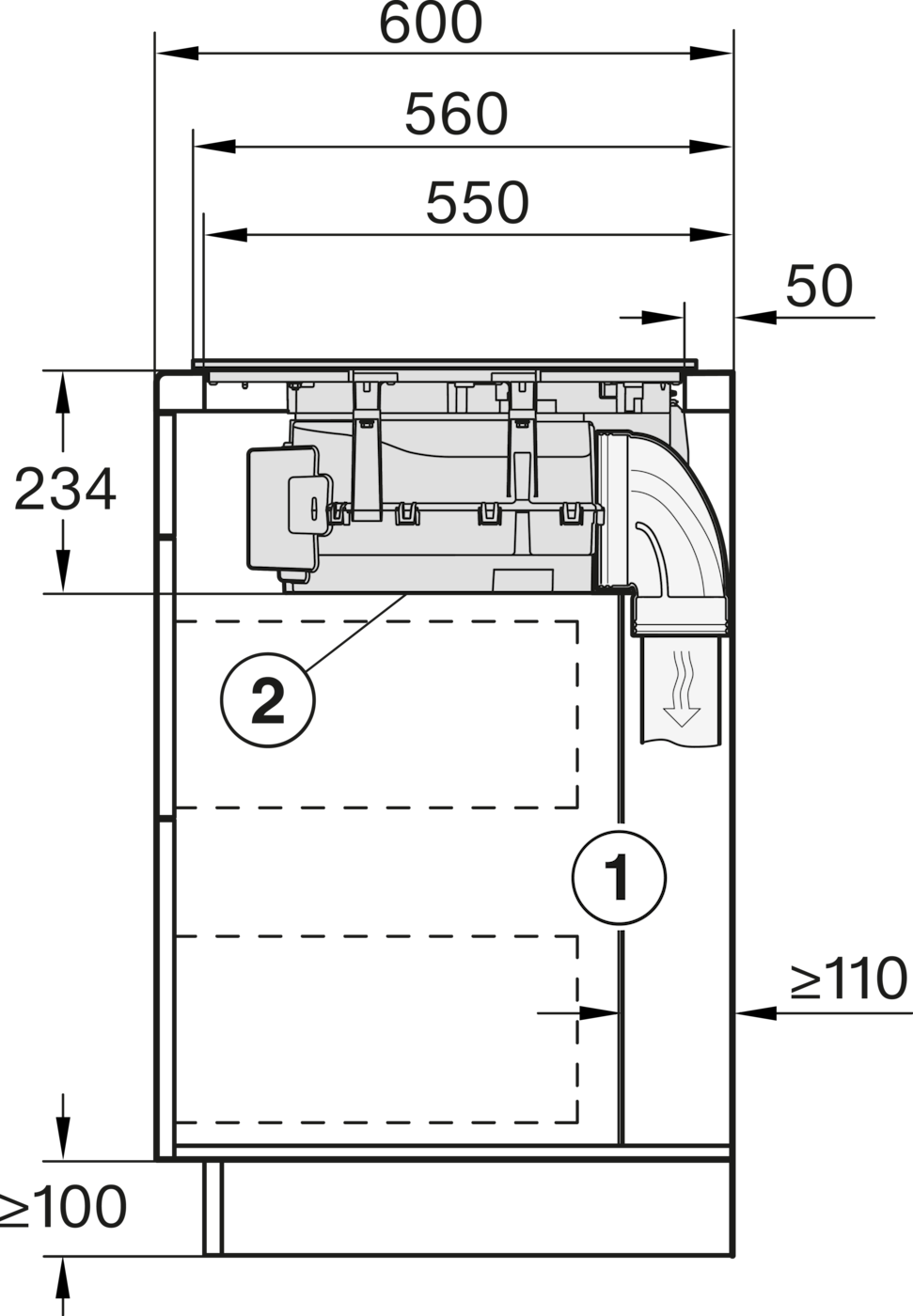

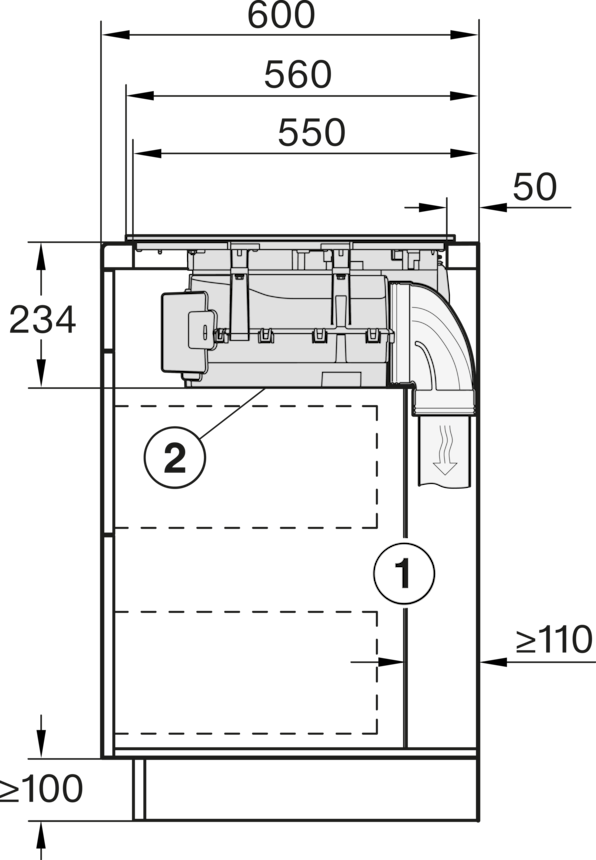

①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation.

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view lying on top

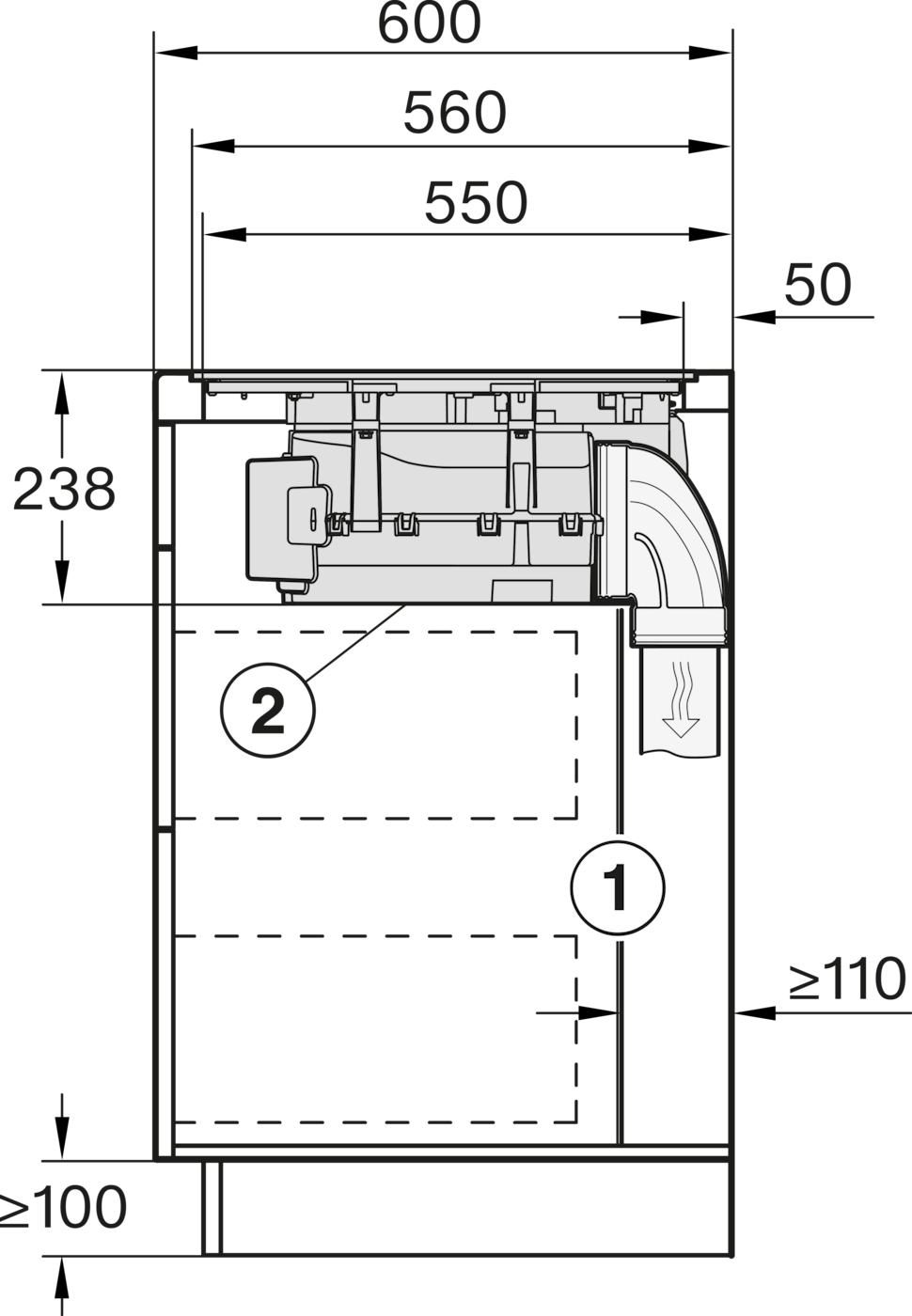

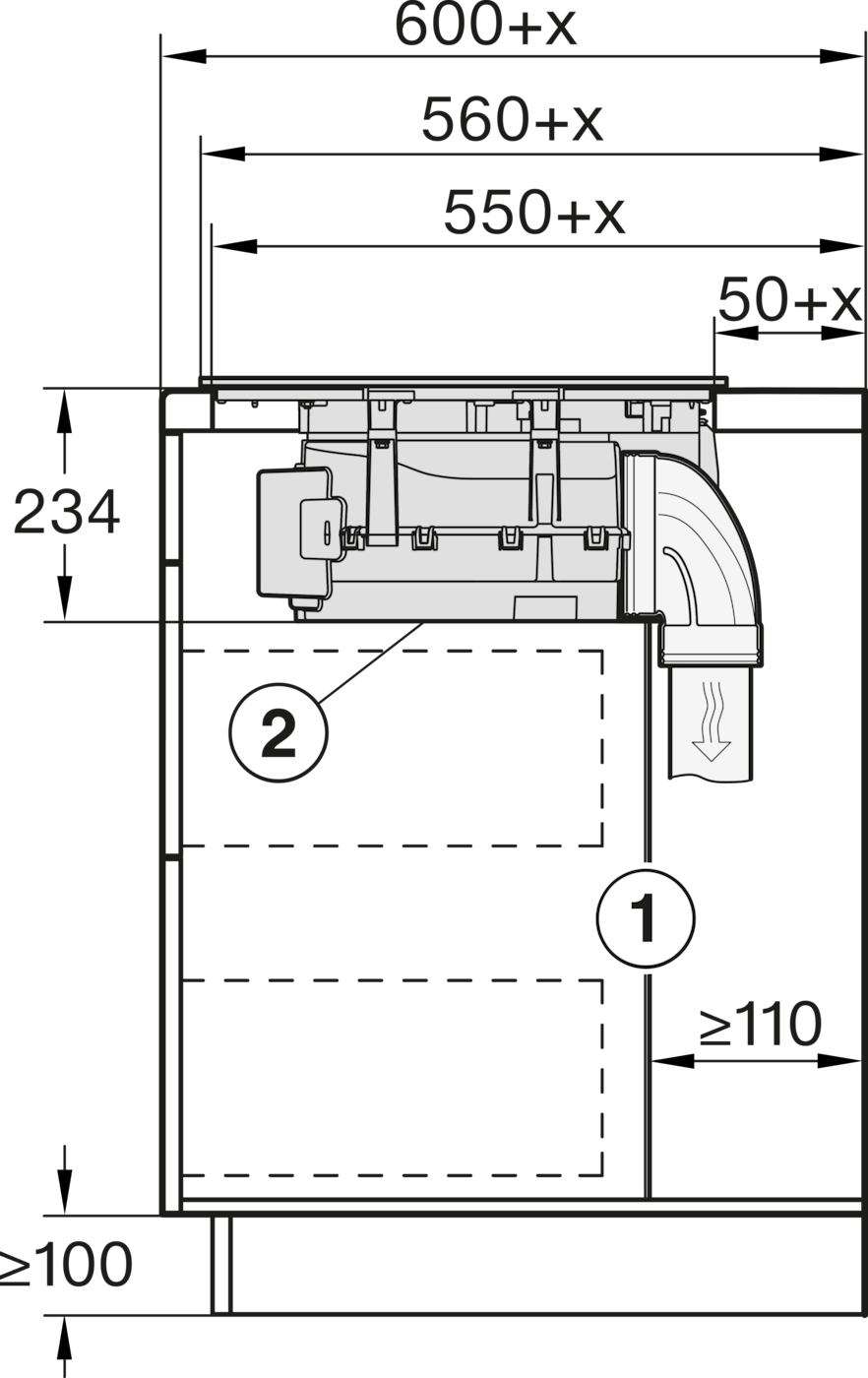

①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ② The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm.

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view lying on top+X

①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation.

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view flush

①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm.

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view flush+X

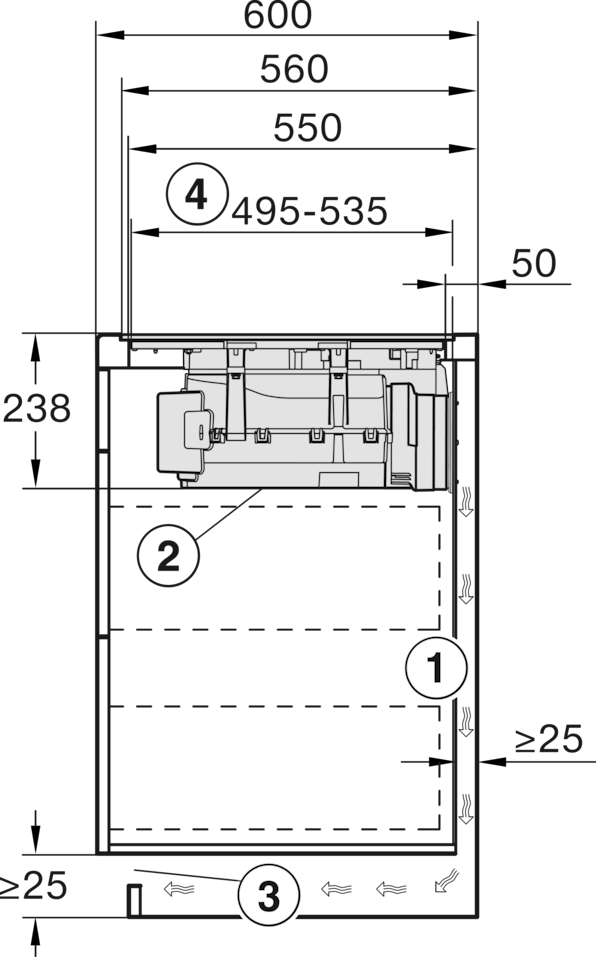

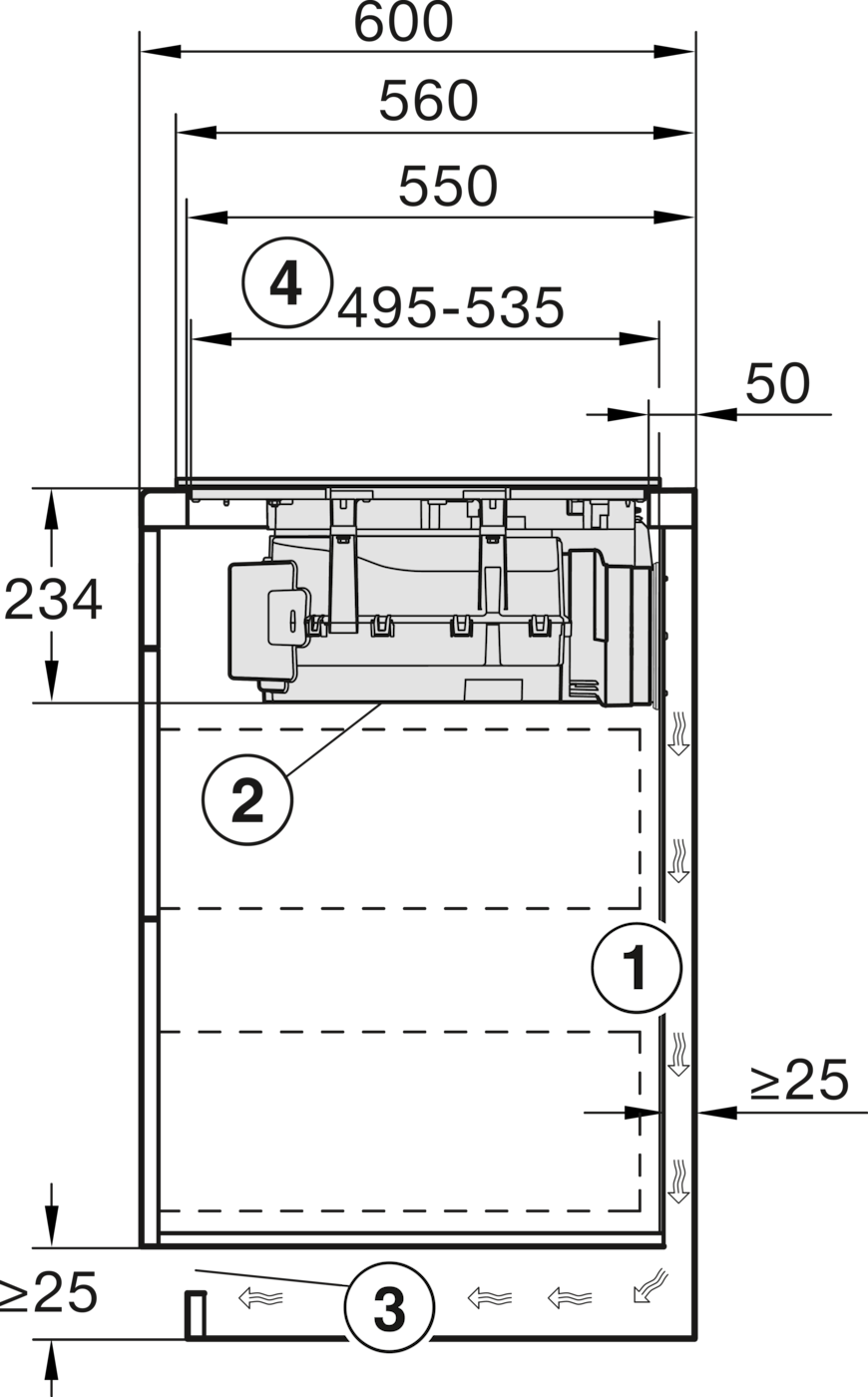

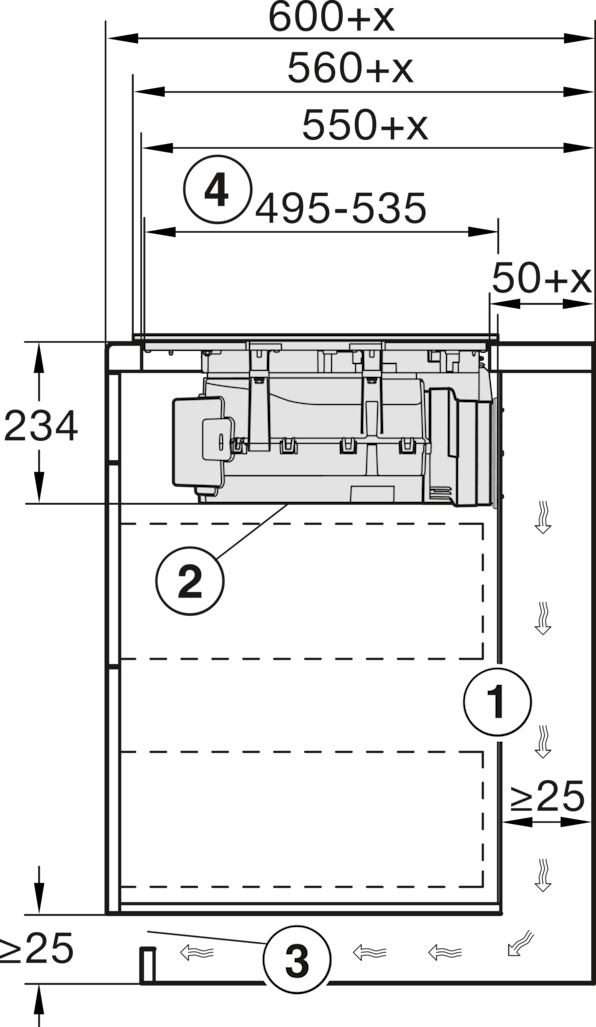

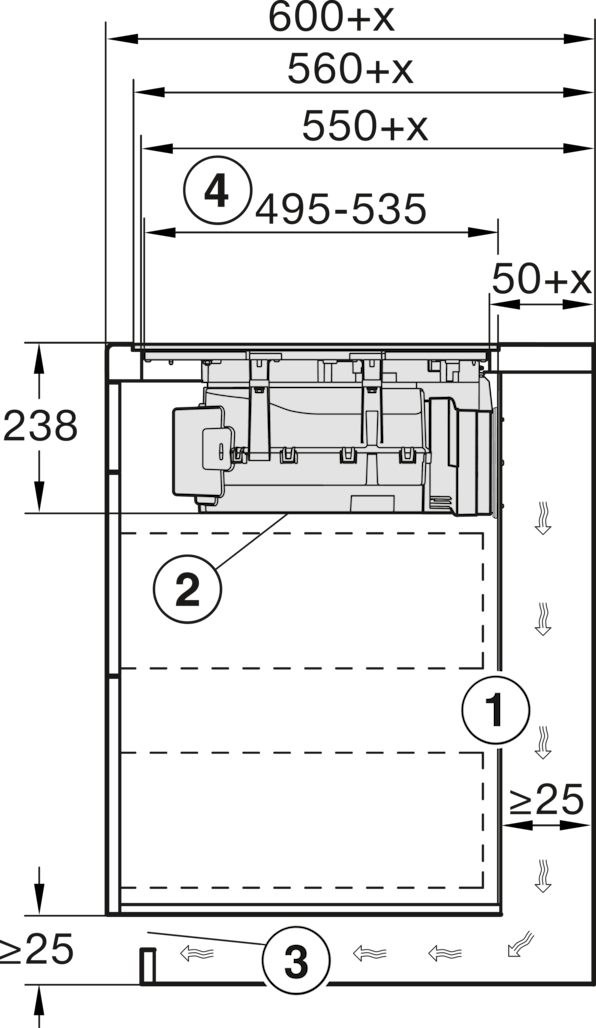

①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view lying on top, Plug&Play

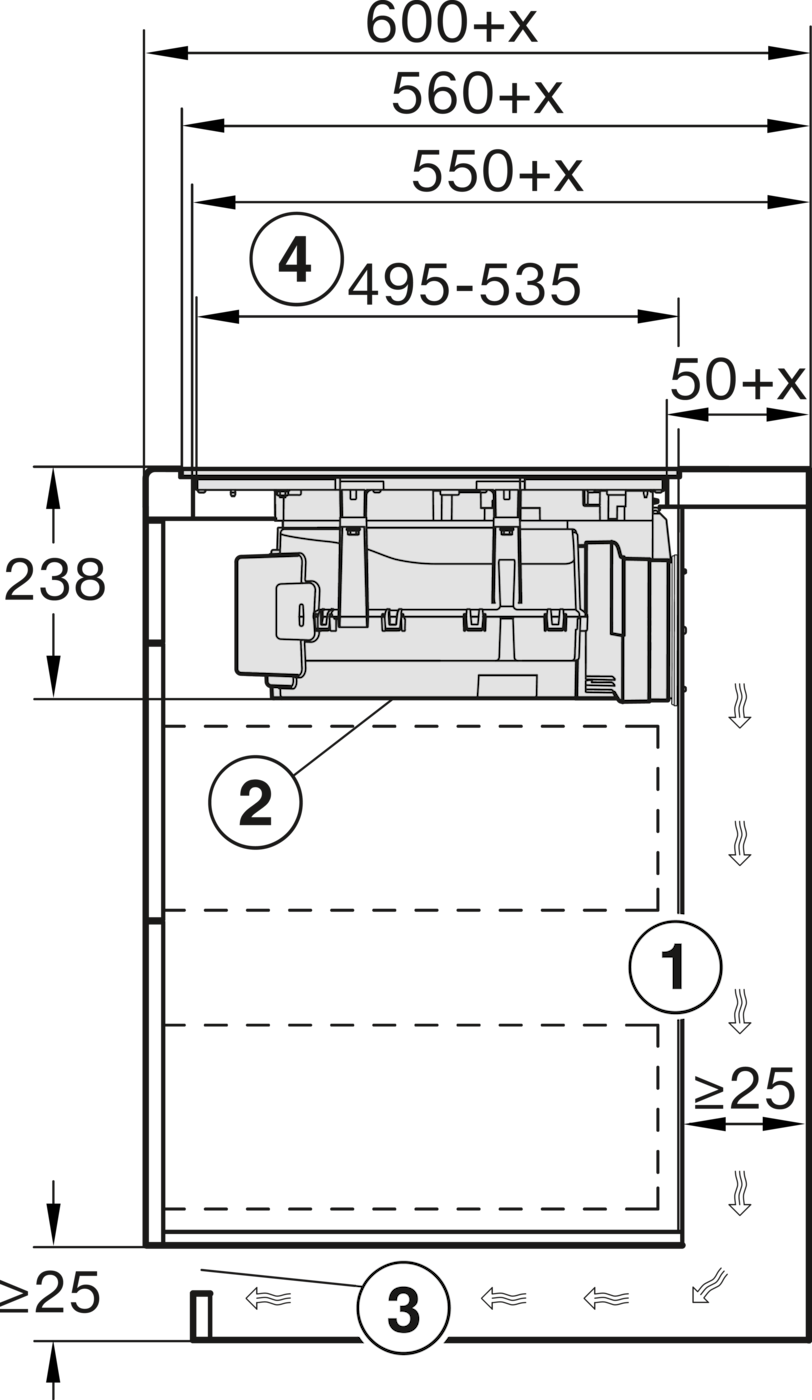

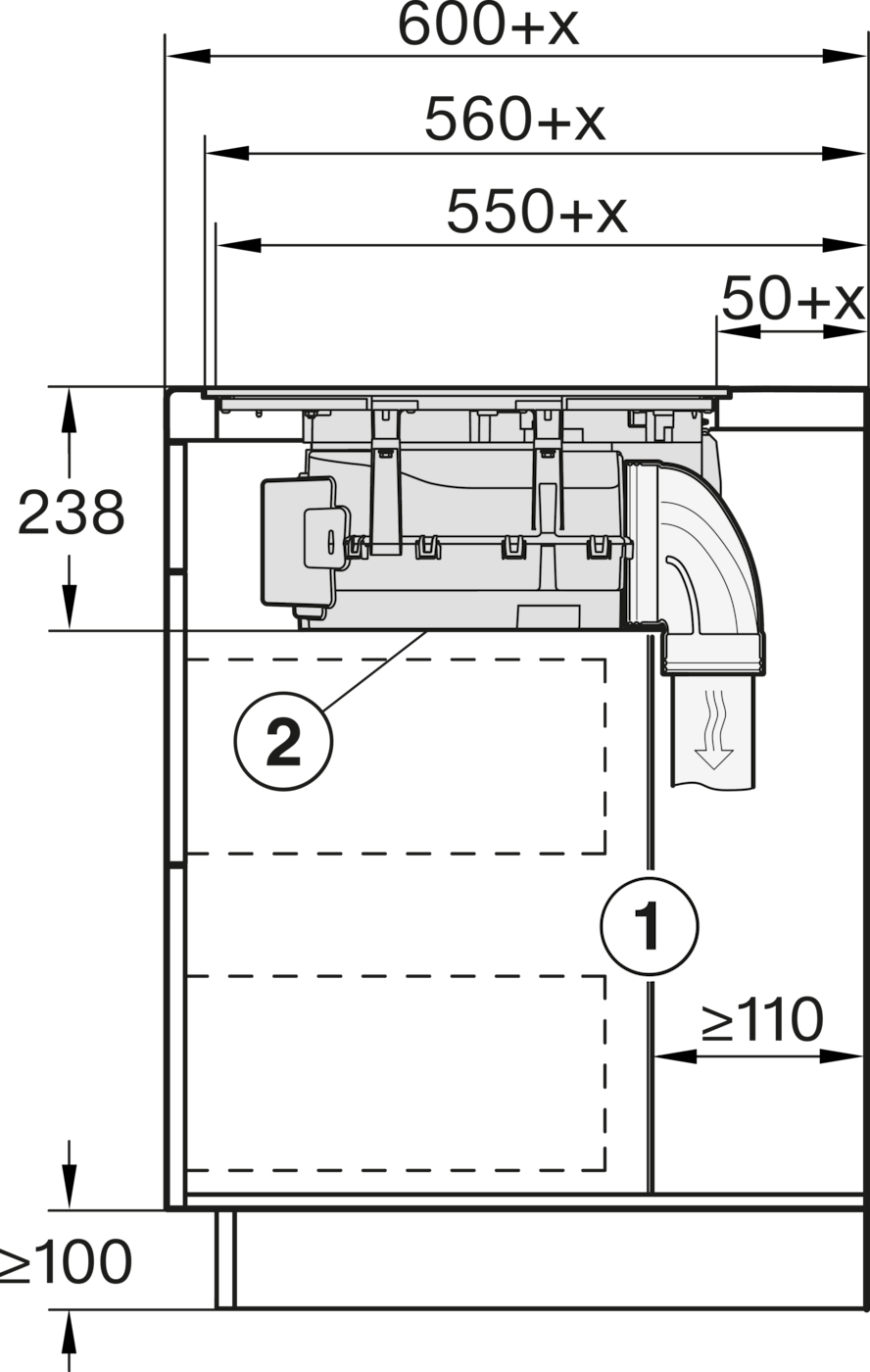

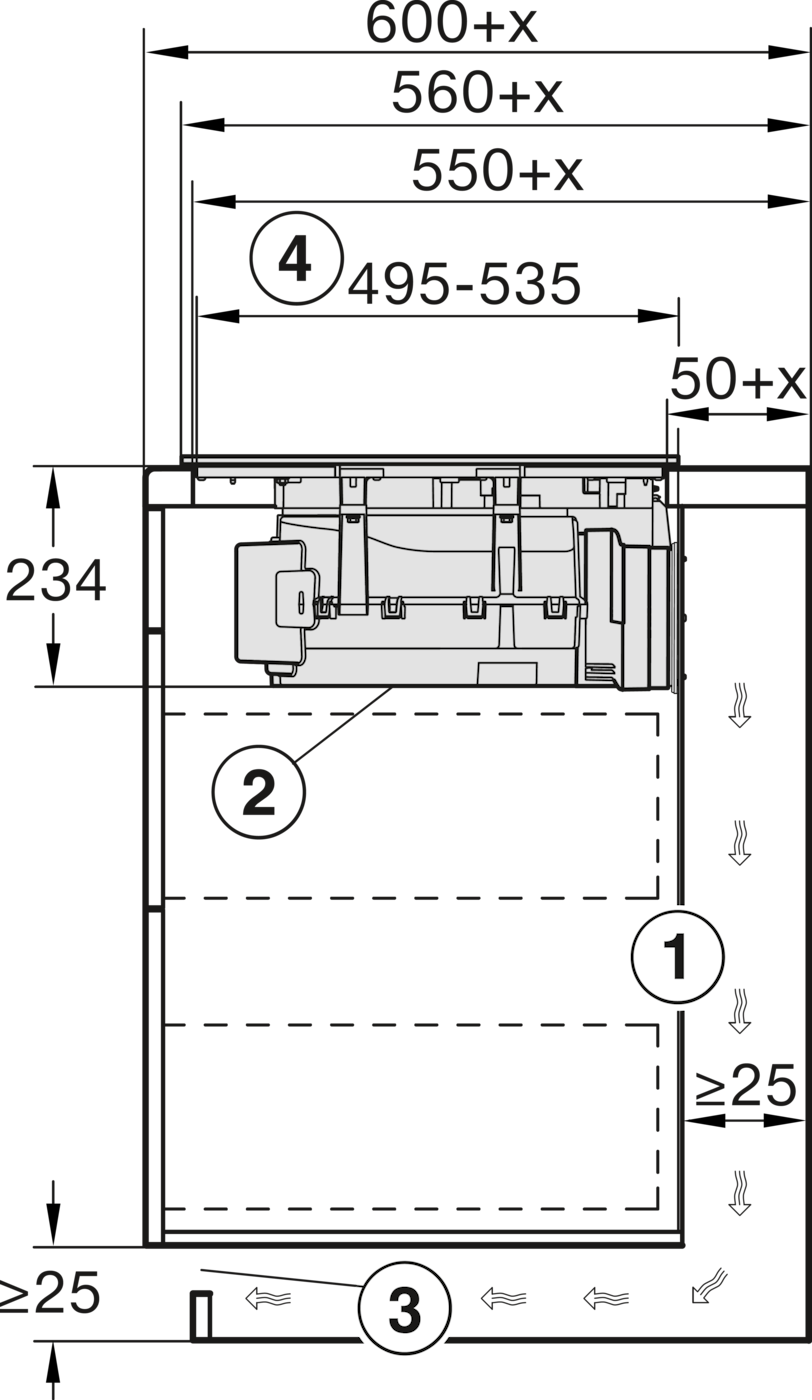

①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed. If the carcase rear wall is 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter, , x Dimension by which the worktop depth is greater than 600 mm.

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view lying on top+X, Plug&Play

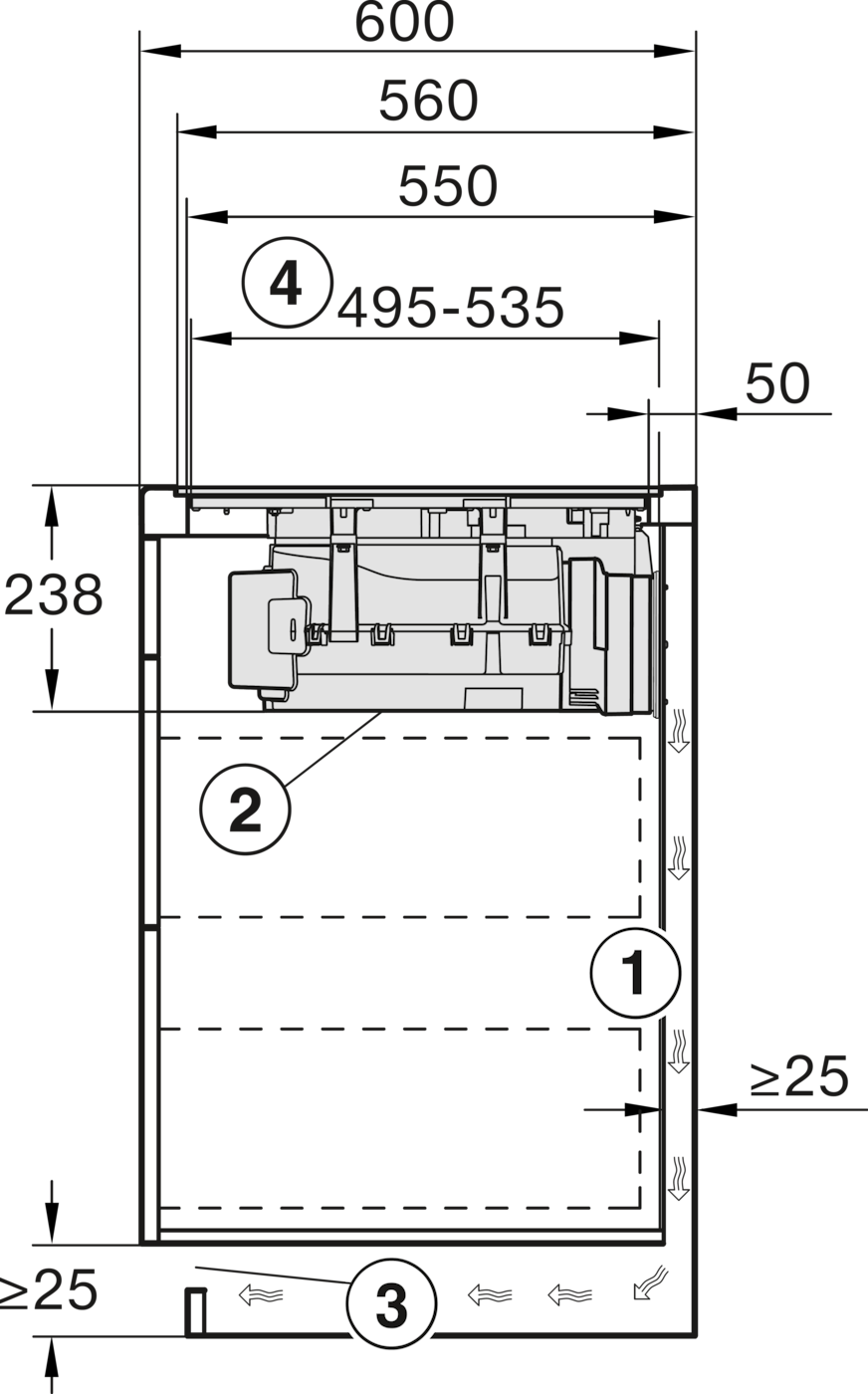

①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the ventilation opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view flush, Plug&Play

①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed. If the carcase rear wall is 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter, , x Dimension by which the worktop depth is greater than 600 mm.

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view flush+X, Plug&Play

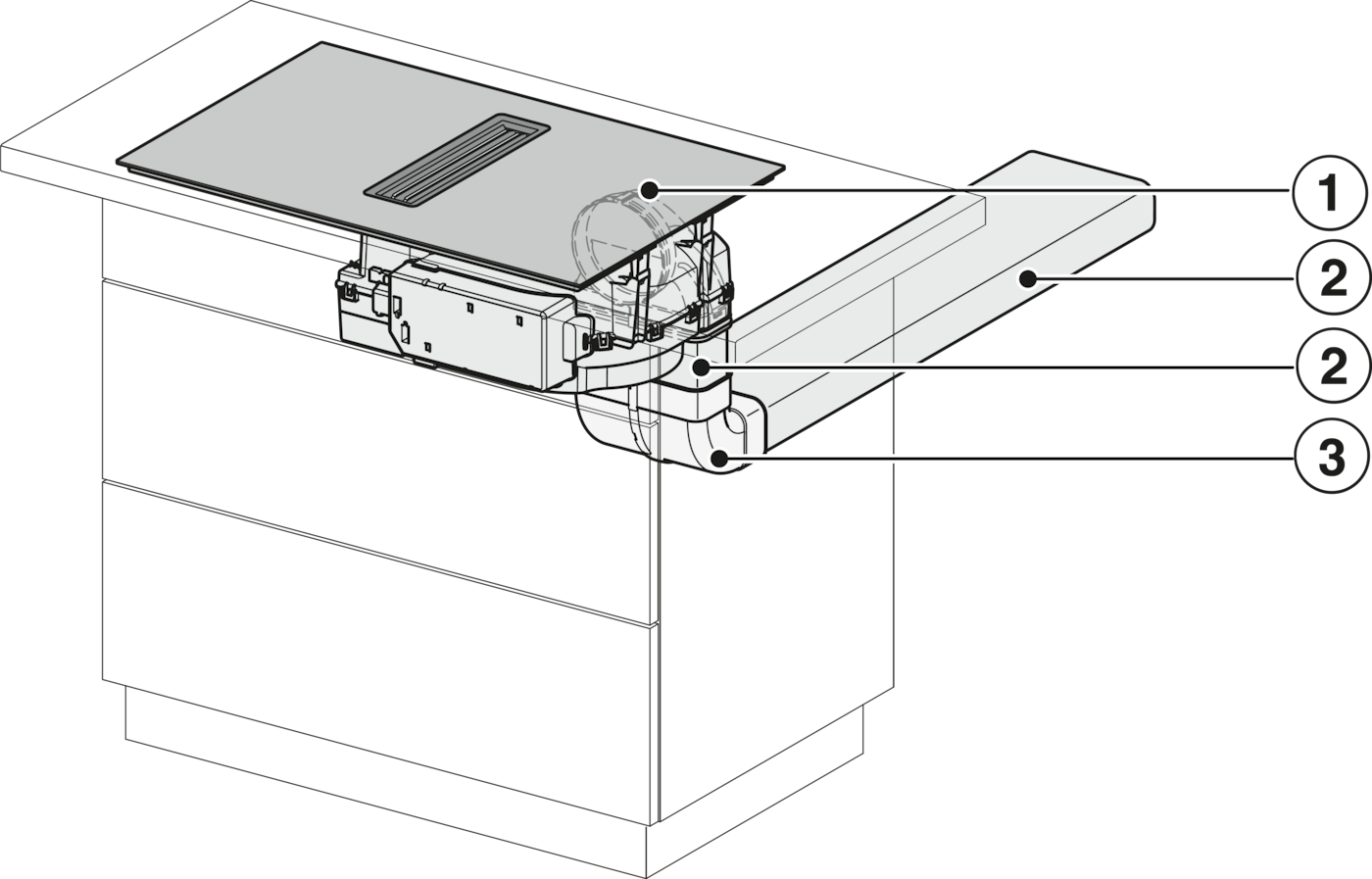

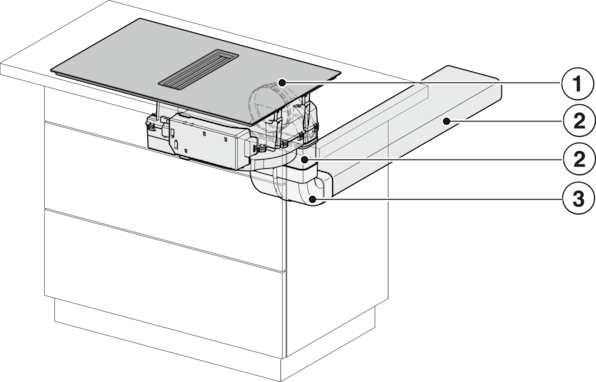

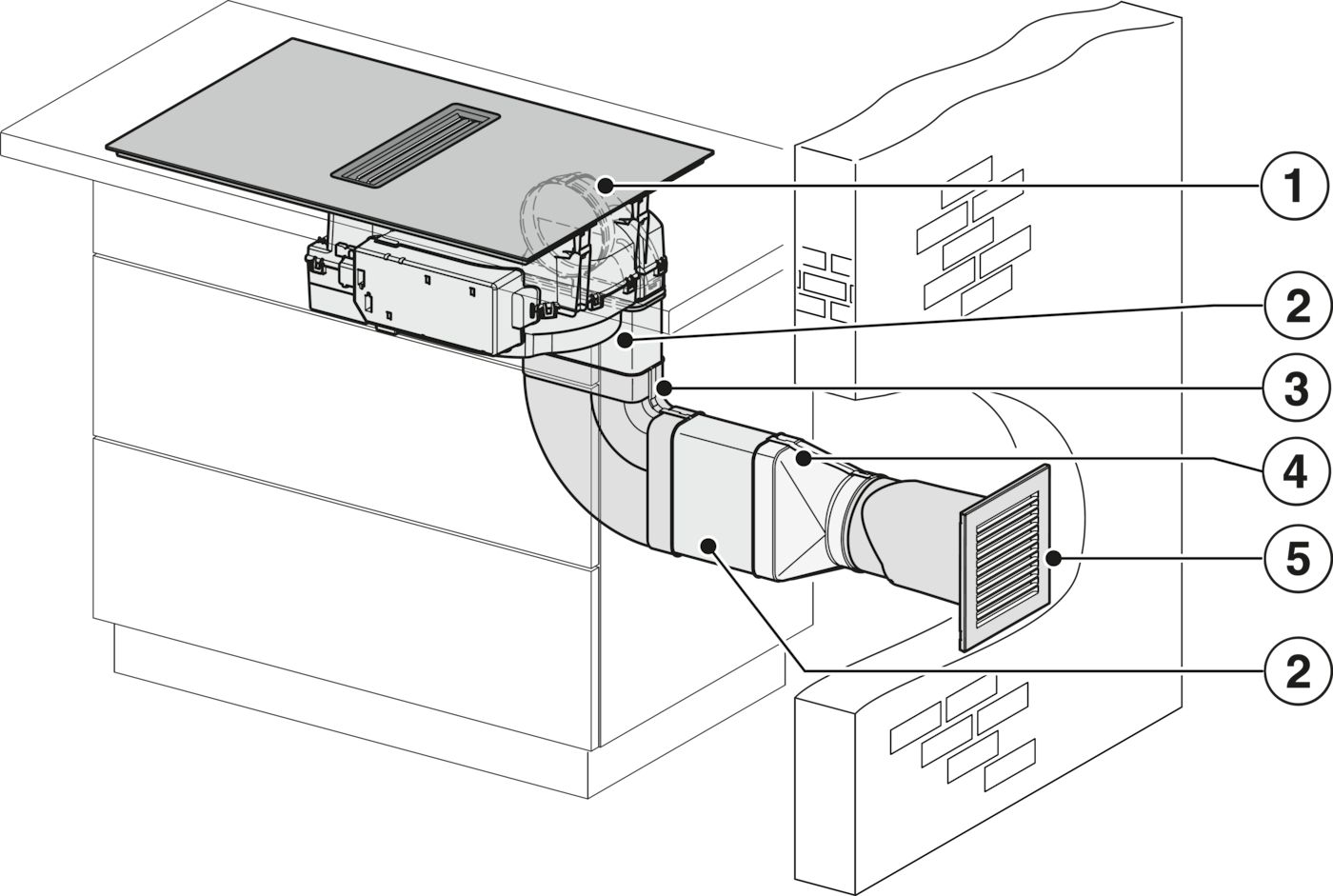

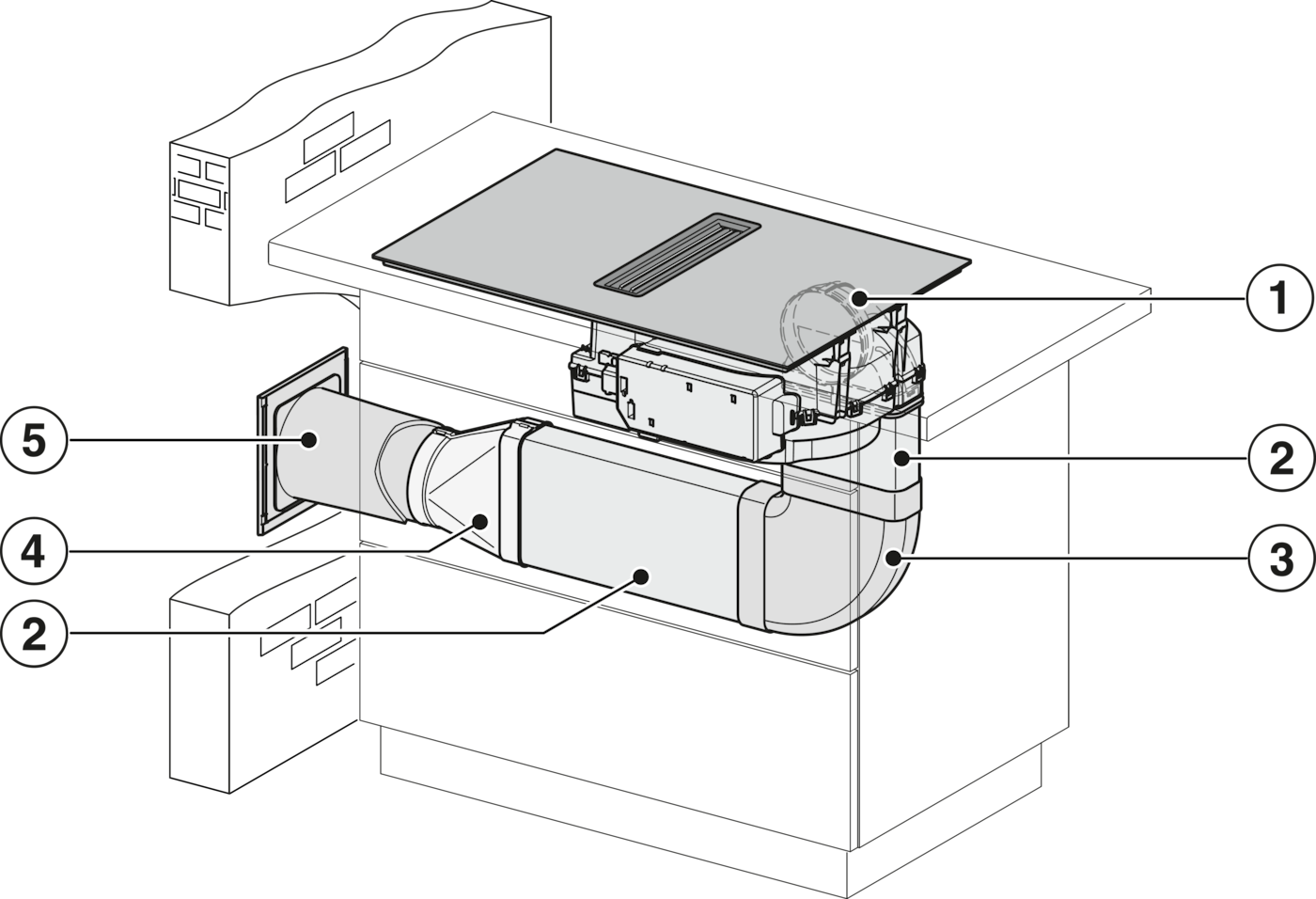

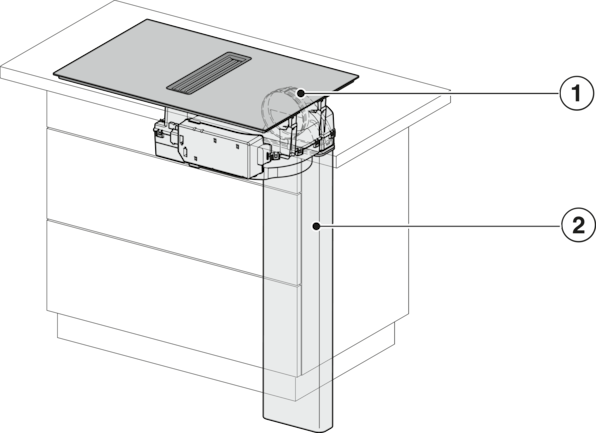

1) DFK-AK 90, 2) DFK-R 1000

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 1 Basis

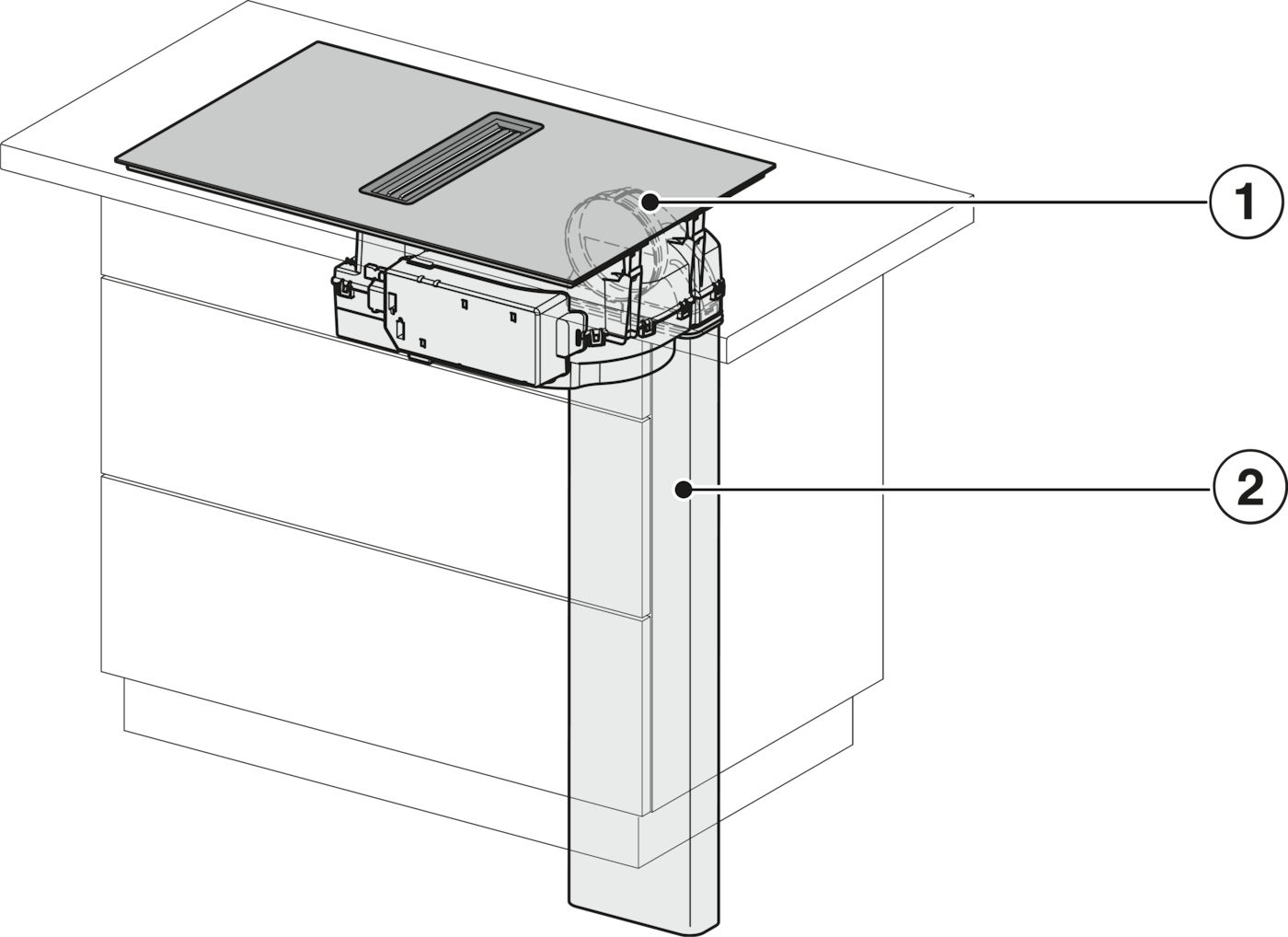

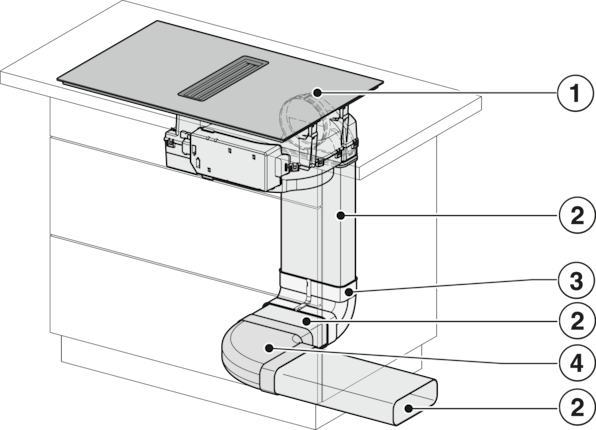

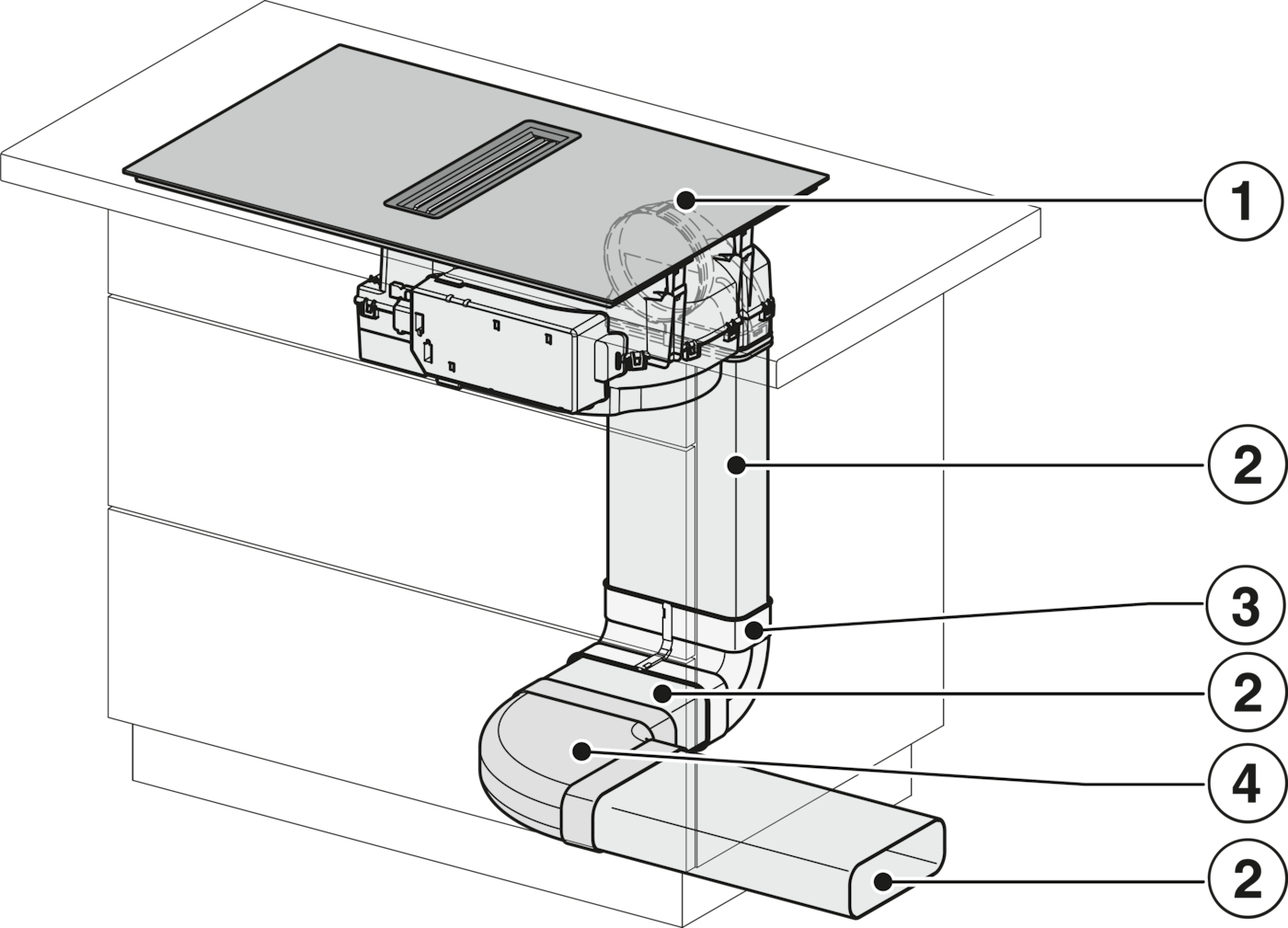

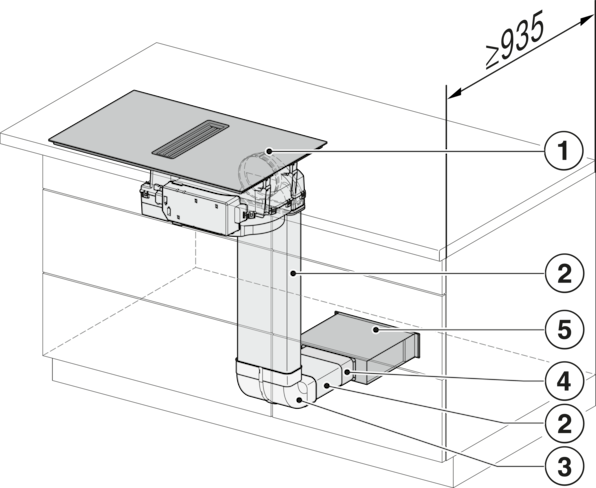

1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 2 Basis

1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL -Installation variant 3 Basis - drawing

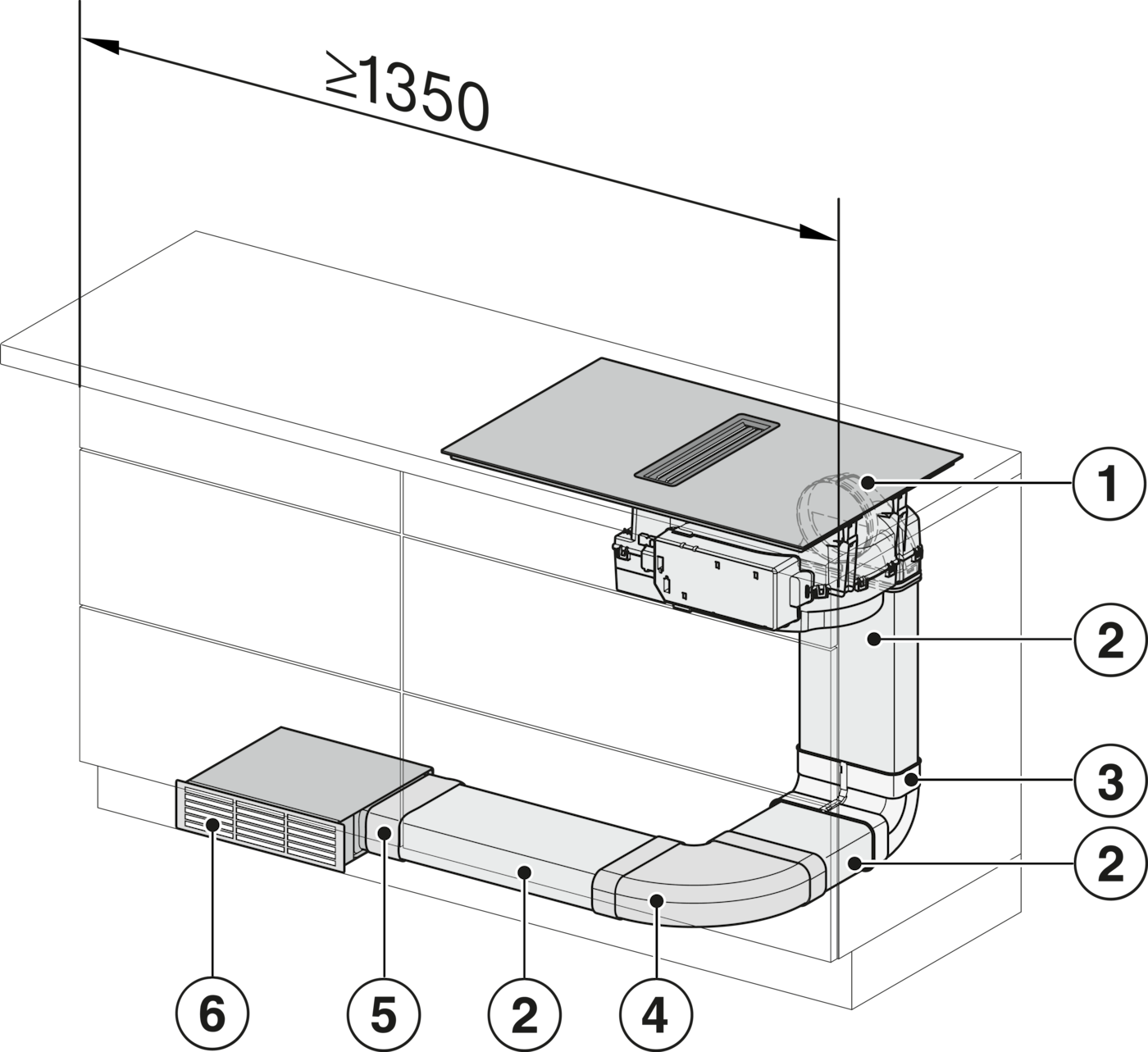

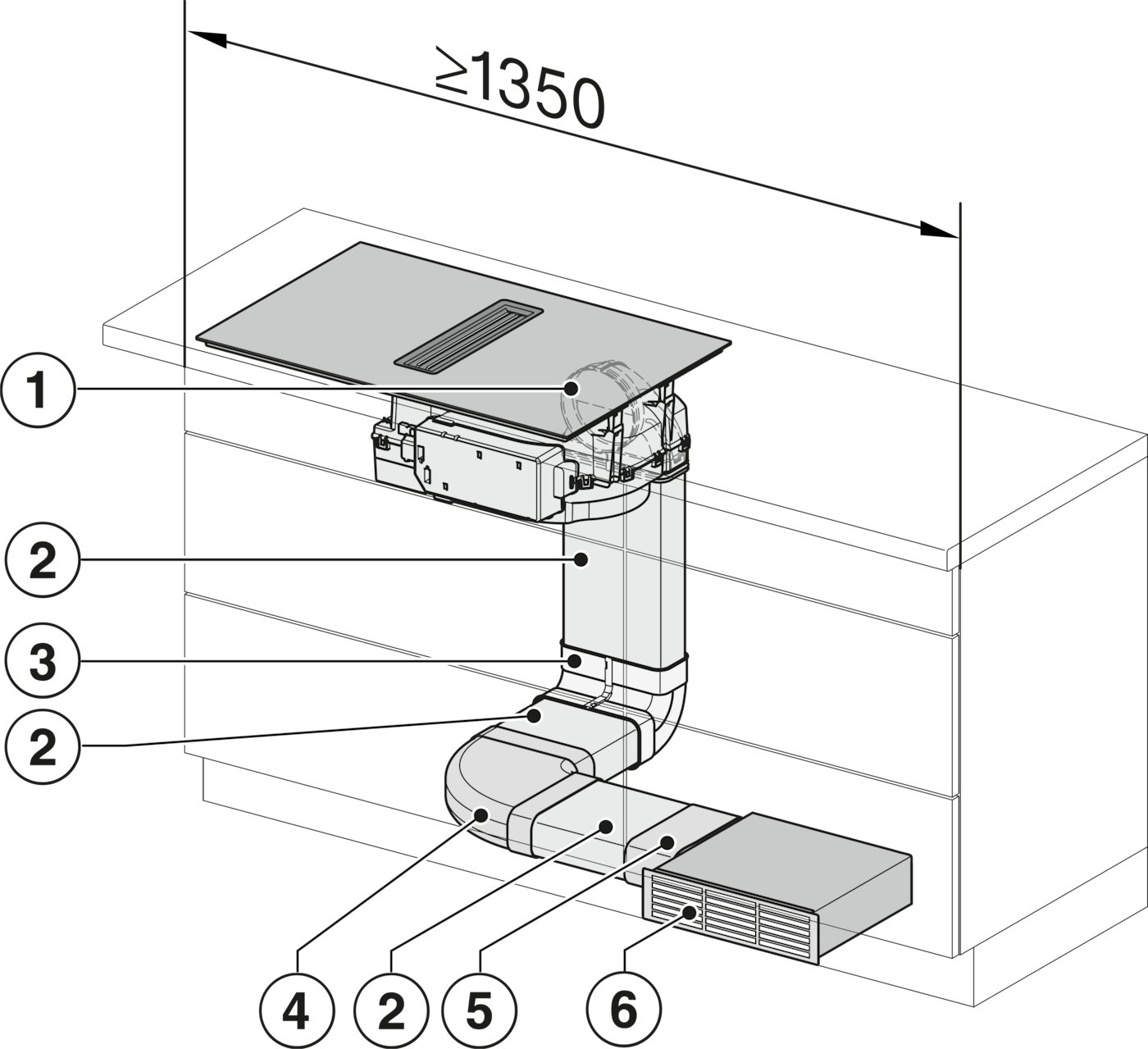

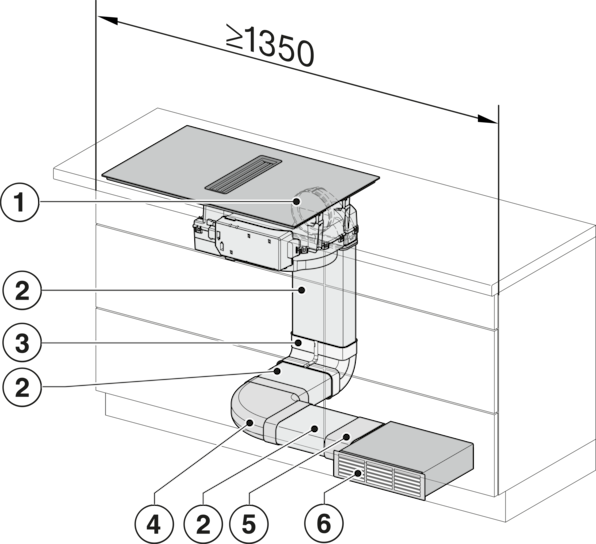

1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1350 mm.

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 4 Circulating air

1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum depth of the cabinet is 935 mm.

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 5 Circulating air

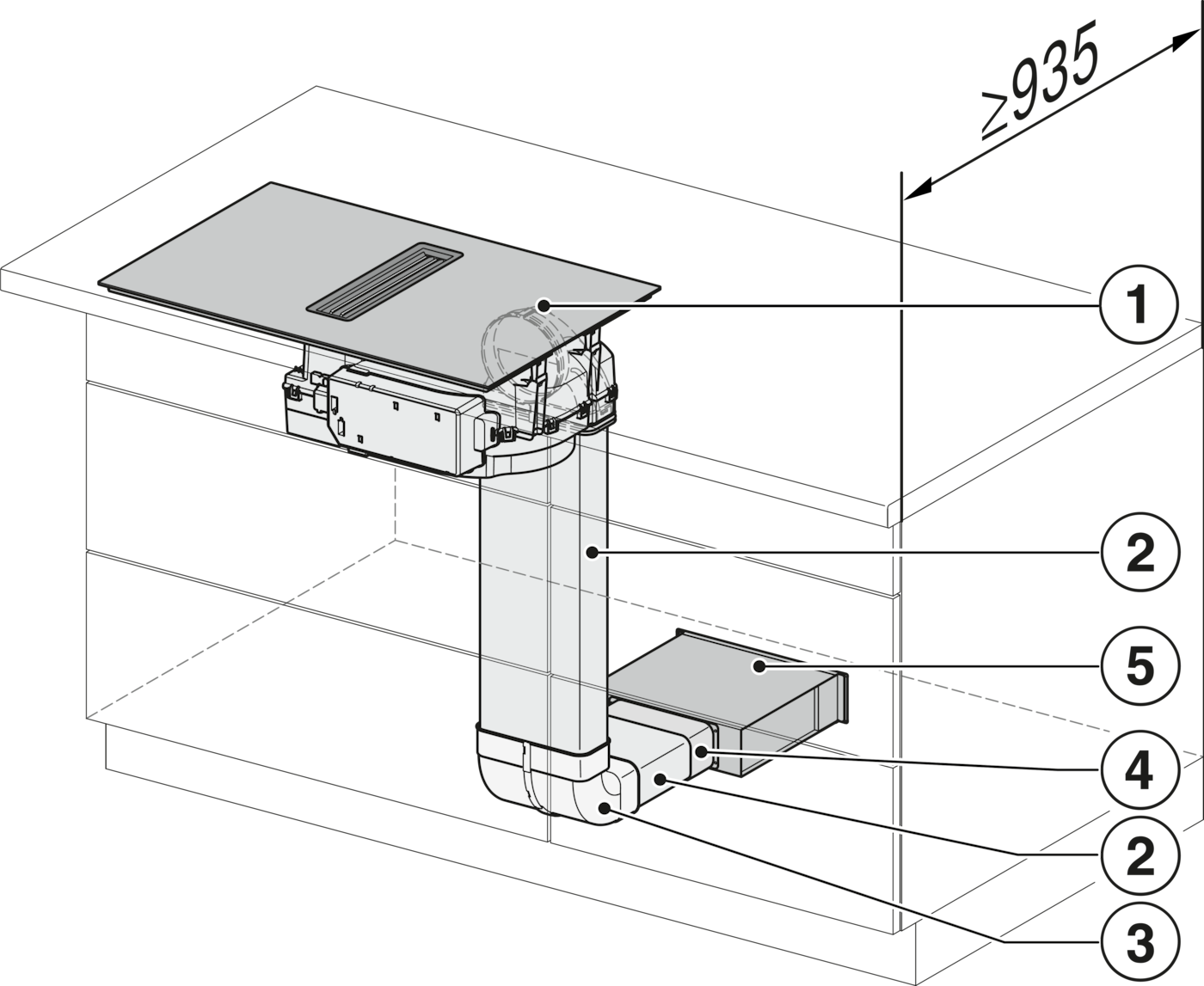

1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-V, 5) DUU 1500, , The minimum depth of the cabinet is 935 mm.

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 6 Circulating air

1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 9 Exhaust air

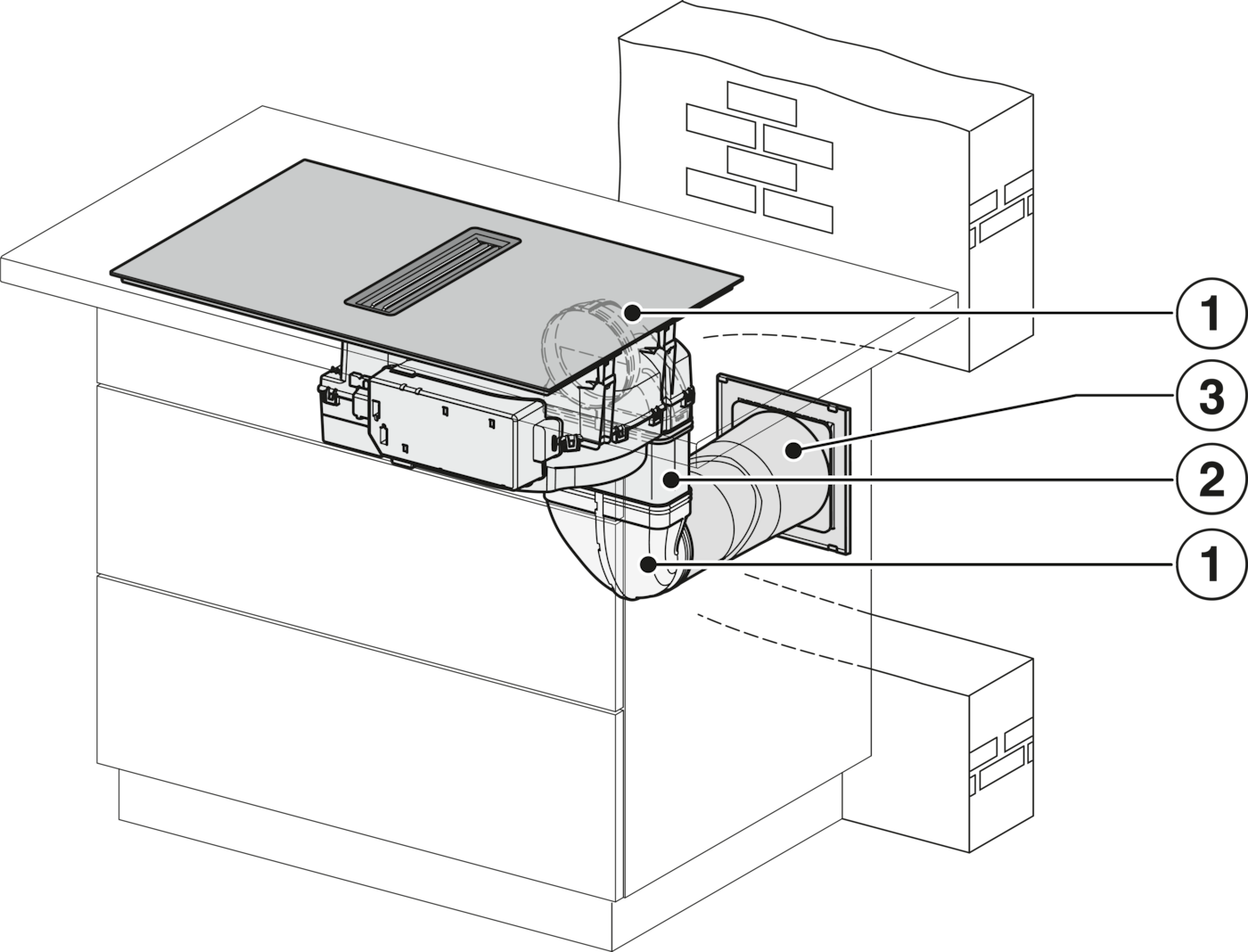

1) DFK-AK 90, 2) DFK-R 1000, 3) DMK 150-1

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 10 Exhaust air

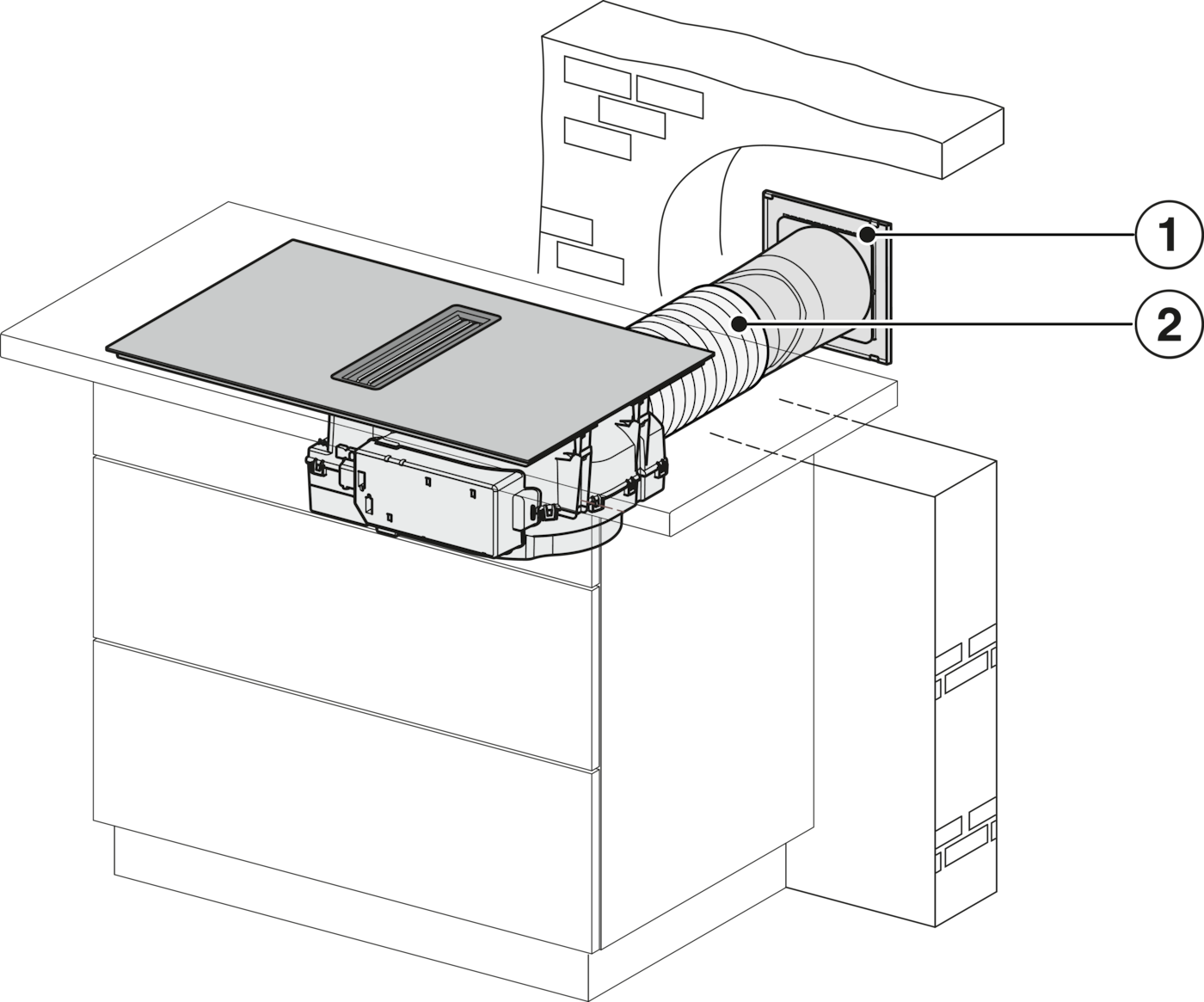

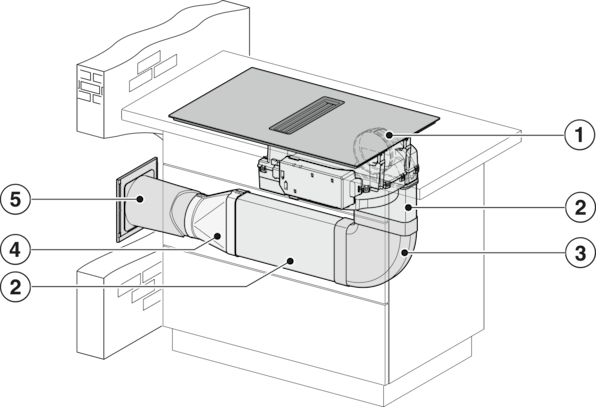

1) DMK 150-1, 2) Flex hose

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 11 Exhaust air

1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 12 Exhaust air

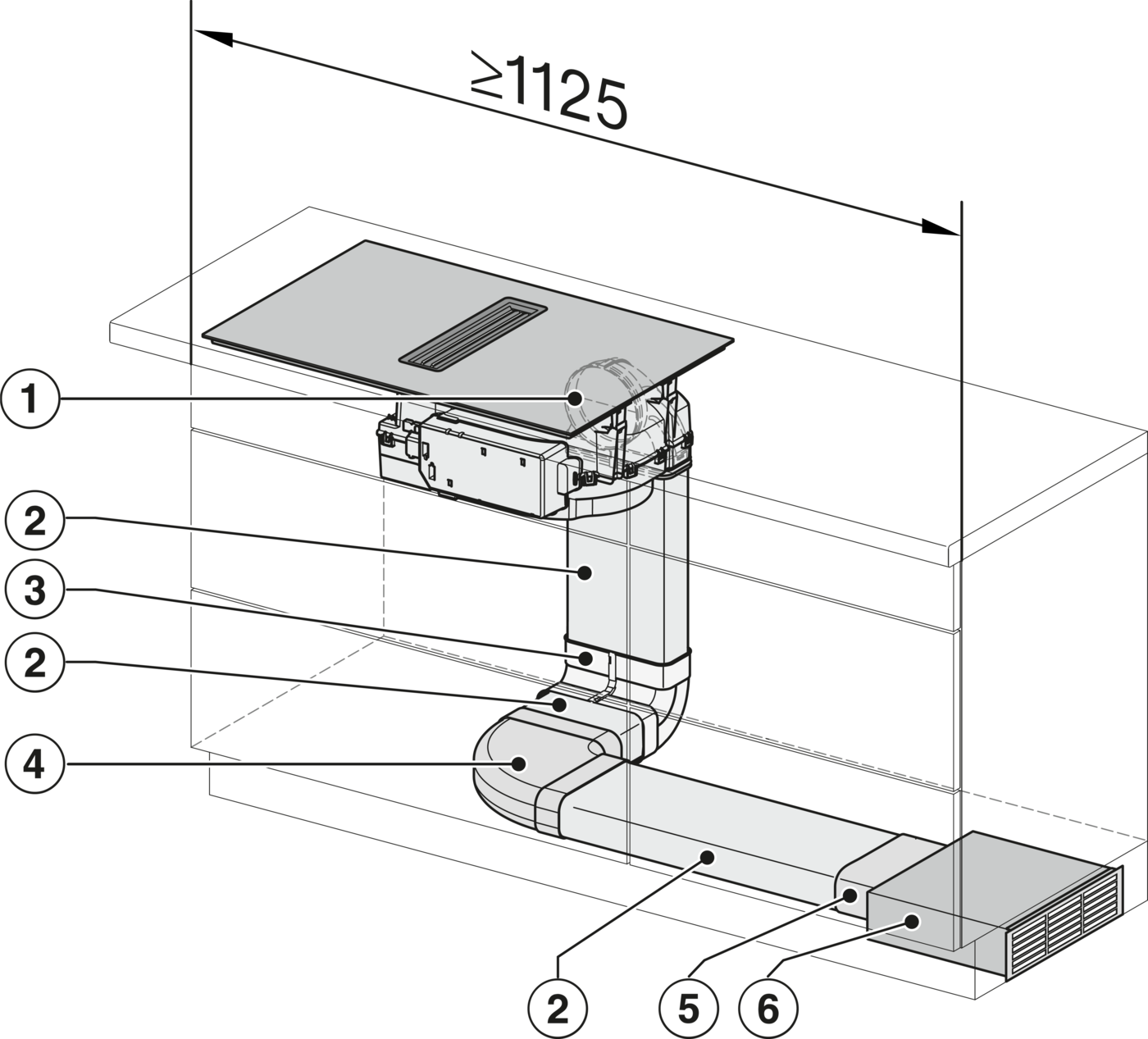

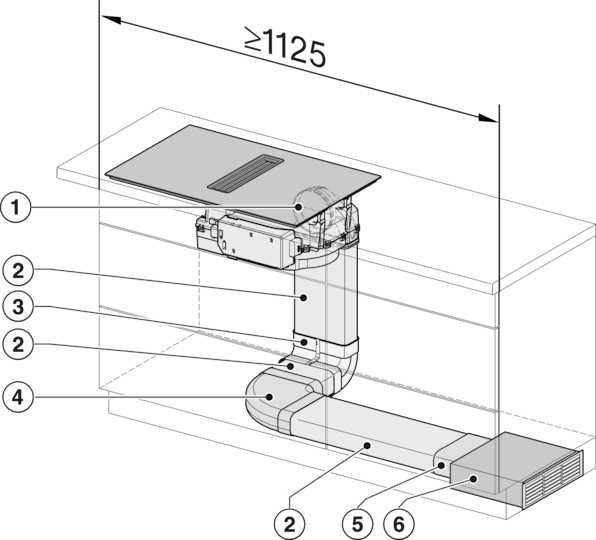

1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1125 mm.

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 13 Circulating air

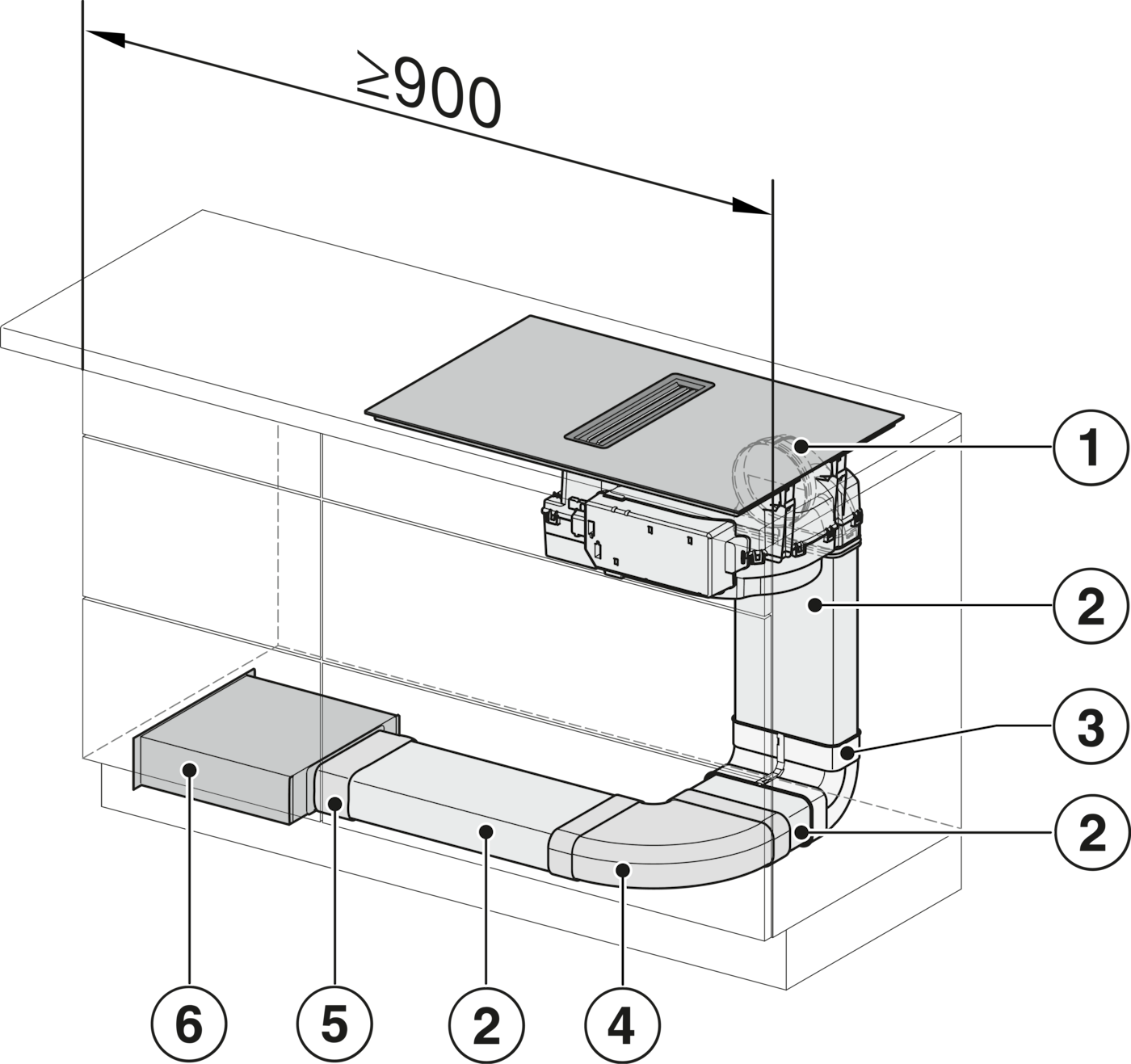

1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 900 mm.

KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 14 Circulating air

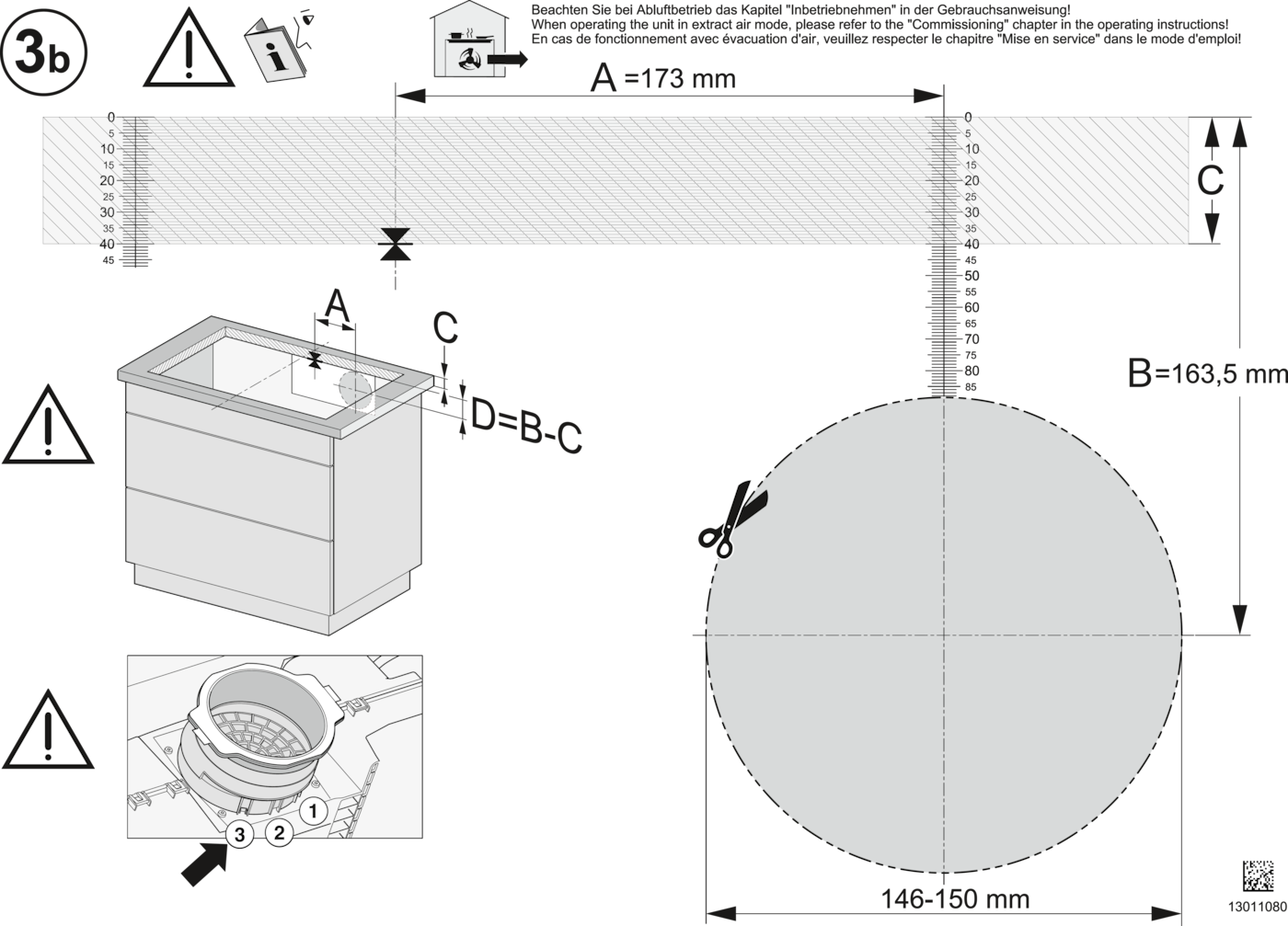

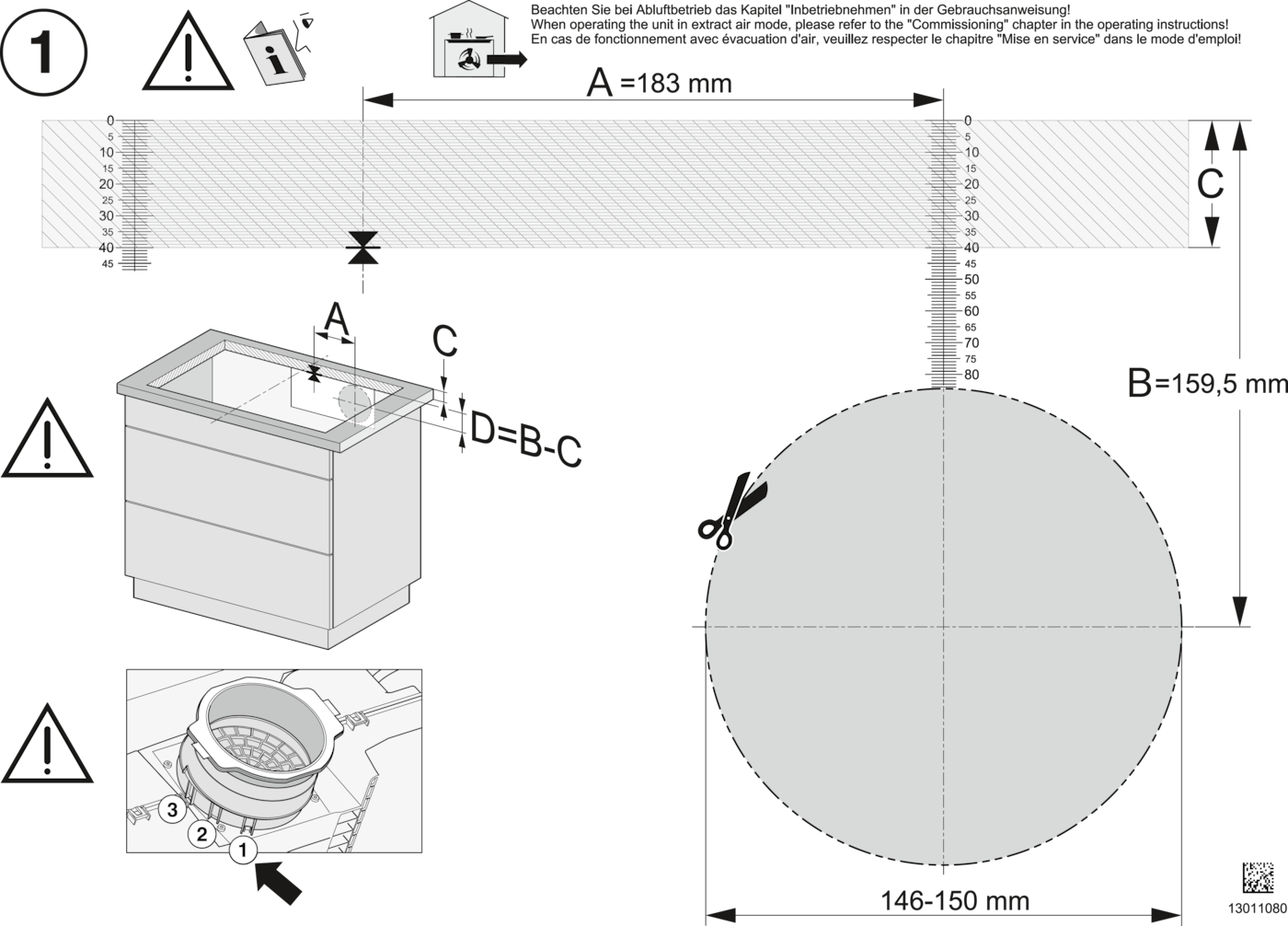

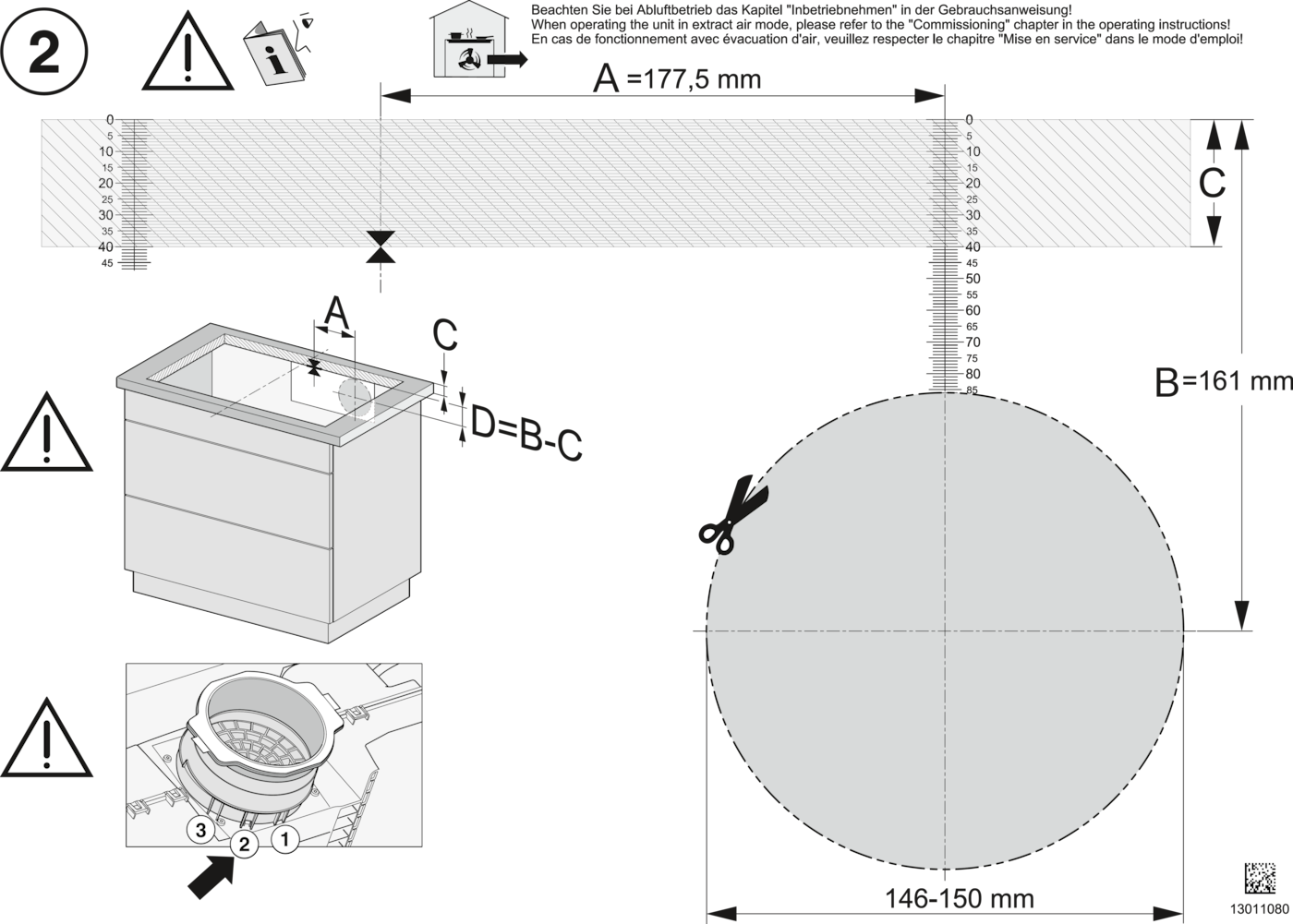

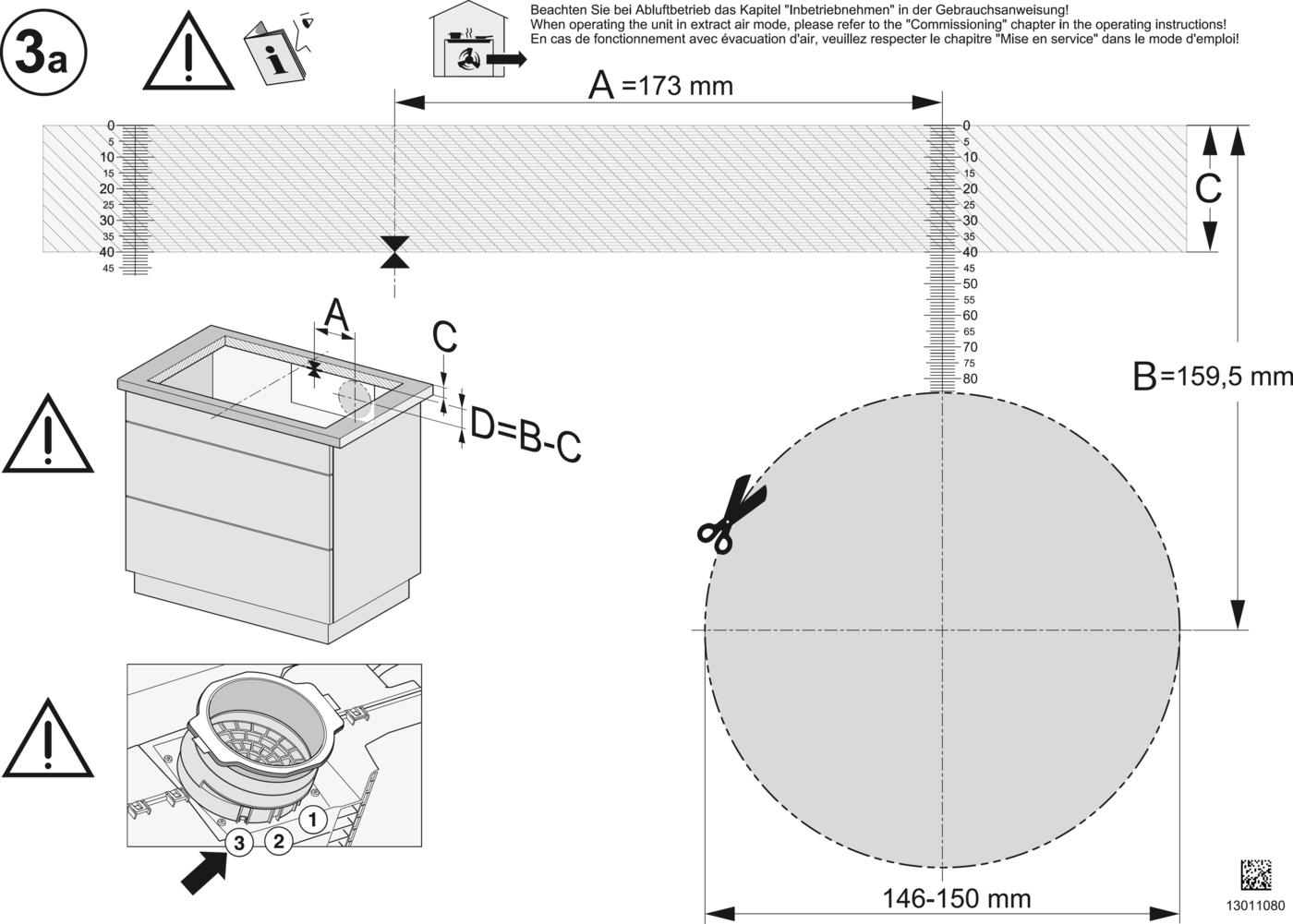

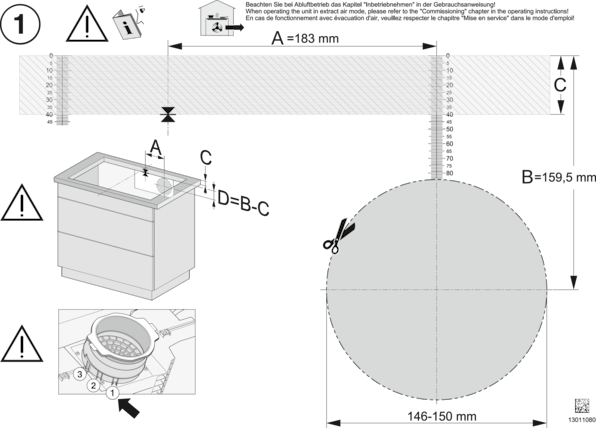

KMDA7676-1FL, KMDA7876-1FL - flush, drilling template, Installation depth 23,8 cm

KMDA7676-1FL, KMDA7876-1FL - flush, drilling template, Installation depth 23,8 cm

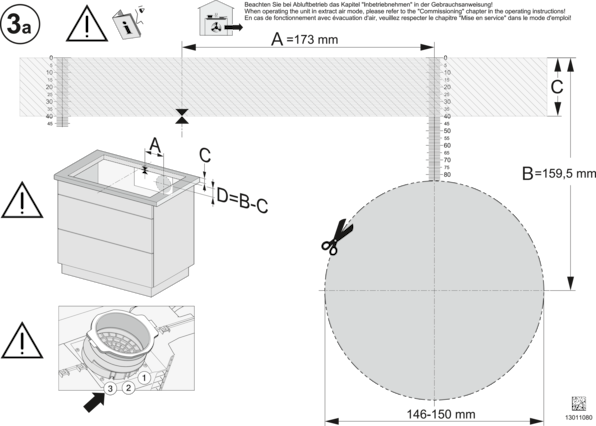

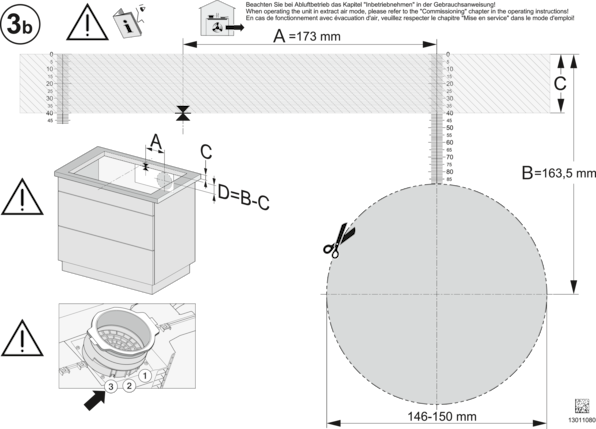

KMDA7676-1FL, KMDA7876-1FL - surface installation, drilling template, 23,8 cm

KMDA7676-1FL, KMDA7876-1FL - surface installation, drilling template, 23,8 cm

KMDA7676-1FL, KMDA7876-1FL - surface installation, 24,8 cm, drilling template

KMDA7676-1FL, KMDA7876-1FL - surface installation, 24,8 cm, drilling template

KMDA7676-1FL, KMDA7876-1FL - flush, drilling template, Installation depth 24,8 cm

KMDA7676-1FL, KMDA7876-1FL - flush, drilling template, Installation depth 24,8 cm

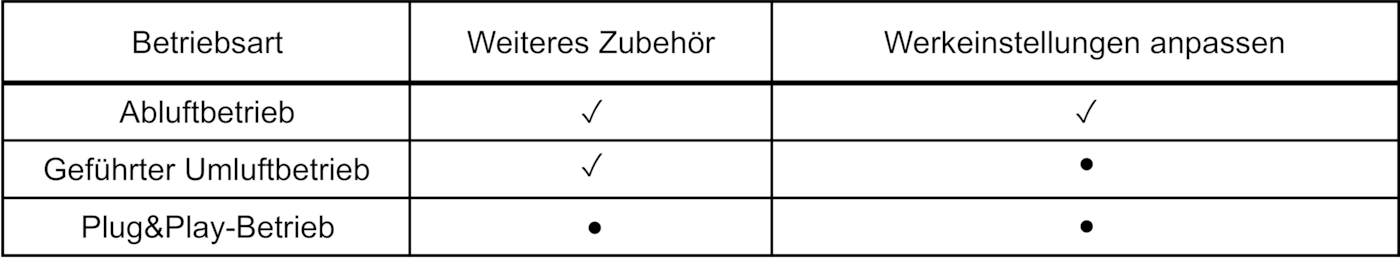

✓Required, • Not required

KMDA7272-1FL/FR, KMDA7473-1FL/FR, KMDA7473-1FL MattFinish, KMDA7676-1FL, KMDA7876-1FL - Operating options
